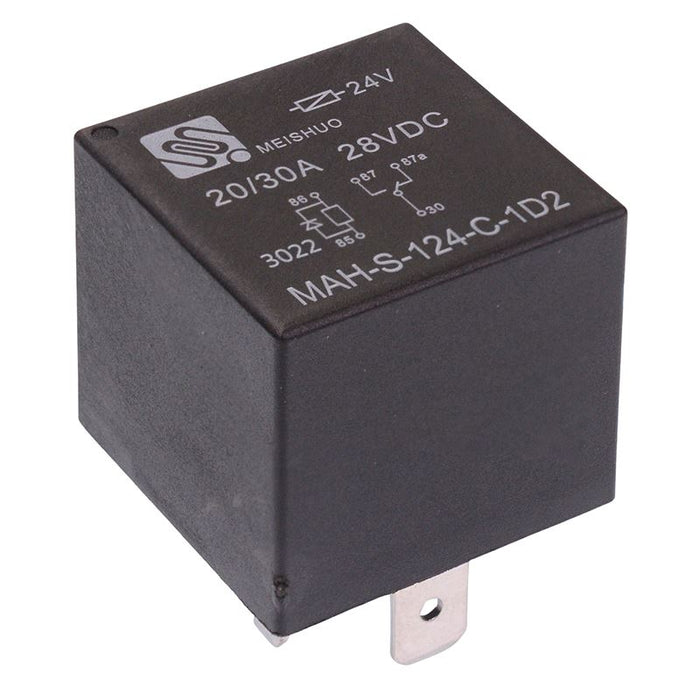

24V Automotive Changeover Relay Diode 40A 5 Pin SPDT

by Meishuo
SKU 485804

MPN: MAH-S-124-C-1D2

Back Order Availability: 120 Days

Availability:
871 in stock, ready to be shipped
Original price £2.22 - Original price £2.22
Original price
£2.22 Inc VAT
£2.22 - £2.22
Current price £2.22 Inc VAT
24V automotive relay featuring SPDT contacts and diode across the coil protecting your equipment against voltage spikes. The relay is sealed providing protection from dust and water, suitable for general purpose automotive applications.

  • Maximum switching current: 40A
  • Coil voltage: 24VDC
  • Coil power: 1.6W
  • Sealed IP67 construction
  • SPDT contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 28 x 28 x 25mm
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 120 Days
    Coil resistance 360Ω
    Coil voltage 24VDC
    Contact arrangement SPDT
    Maximum continuous voltage 31.5VDC
    Maximum switching current 40A
    Maximum switching voltage 80VDC
    Mounting type Plug In
    Number of contacts 5
    Power consumption 1.6W
    Terminal type Quick Connect
