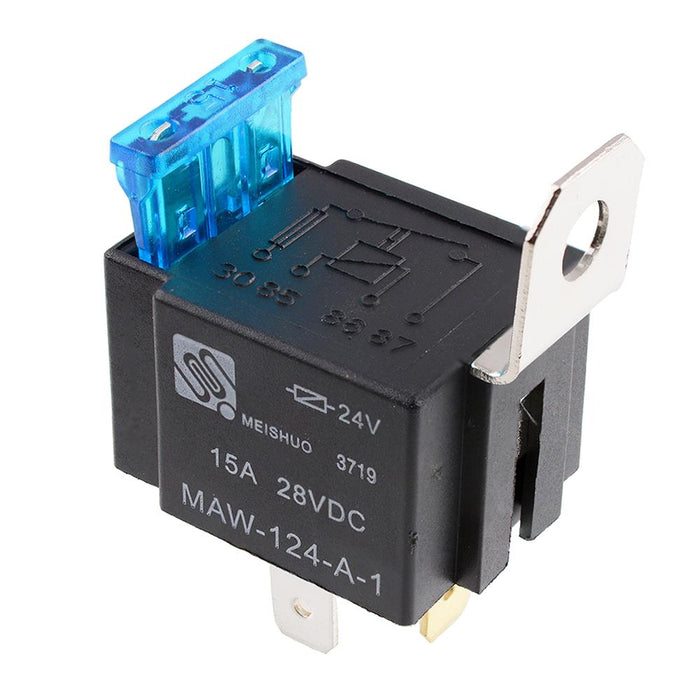

24V SPNO Automotive Fused Relay Metal Bracket 15A MAW-124-A-1
by Meishuo
SKU 482134
MPN: MAW-124-A-1
Availability:
108 in stock
Original price
£2.55
-
Original price
£2.55
Original price
£2.55
£2.55
-
£2.55
Current price
£2.55
24V automotive relay featuring a 15A fuse and SPNO contacts. The relay features a detachable metal mounting bracket and quick connect 6.3mm terminals compatible with most 4 pin sockets. The relays are suited for a wide range of 24V automotive applications requiring fused protection.
Detachable metal bracket Includes 15A blade fuse Contact Rating: 15A 28VDC Coil voltage: 12VDC Maximum continuous current: 30A Maximum switching voltage: 30VDC Coil power: 1.8W Contacts: SPNO Excellent shock and vibration resistance Wide temperature range 6.3mm quick connect terminals Body dimensions: 34.6 x 25.2 x 21mm
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 320Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPNO |
| Maximum Switching Current | 15A |
| Maximum Switching Voltage | 28VDC |
| Mounting Type | Plug In |
| Number of Contacts | 4 |
| Power Consumption | 1.8W |
| Terminal Type | Quick Connect |
