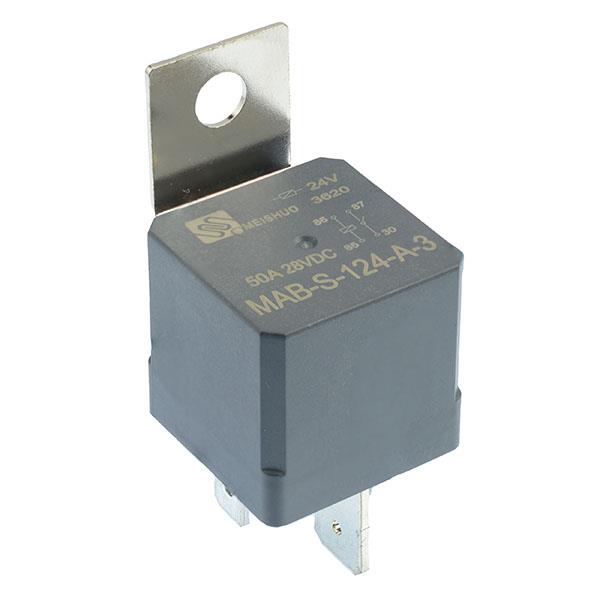

24V Automotive Relay 70A 4-Pin Metal Bracket SPNO

by Meishuo
SKU 482502

MPN: MAB-S-124-A-3

Availability:
567 in stock
Original price £2.55 - Original price £2.55
Original price
£2.55 Inc VAT
£2.55 - £2.55
Current price £2.55 Inc VAT
24V high power relay featuring SPNO contacts suitable for general purpose automotive applications. The relay features a metal mounting bracket and has a compact sealed construction to protect from water and damp.

  • Maximum switching current: 70A
  • Maximum switching voltage: 50VDC
  • Coil voltage: 24VDC
  • Coil power: 1.6W
  • Sealed IP67 construction
  • SPNO contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 26 x 26 x 25mm
  • Specification
    Ambient temperature -40°C to +125°C
    Back order lead time 120 Days
    Coil resistance 360Ω
    Coil voltage 24VDC
    Contact arrangement SPNO
    Maximum switching current 70A
    Maximum switching voltage 50VDC
    Mounting type Plug In
    Number of contacts 4
    Power consumption 1.6W
    Terminal type Quick Connect
