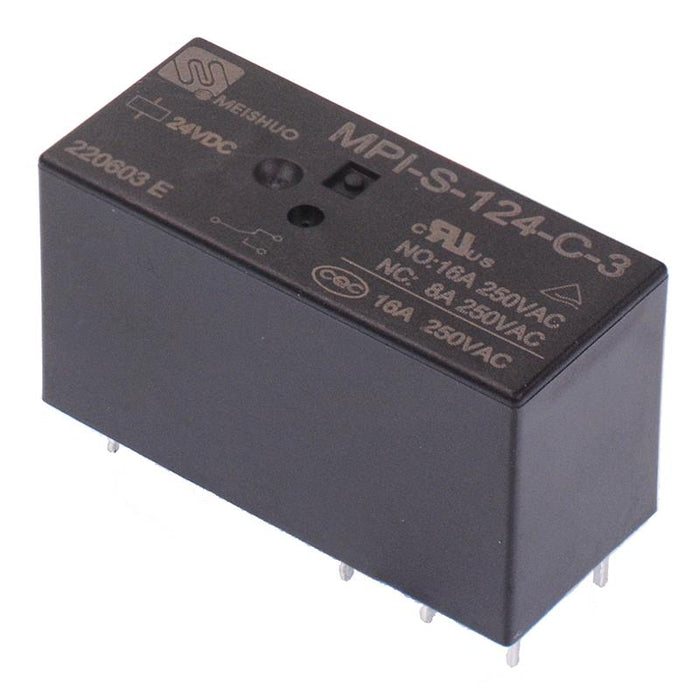

24V High Power PCB Relay 16A SPDT MPI-S-124-C-3
by Meishuo
SKU 485808
MPN: MPI-S-124-C-3
Availability:
364 in stock
Original price
£2.04
-
Original price
£2.04
Original price
£2.04
£2.14
£2.14
-
£2.14
Current price
£2.14
24V miniature high power relay featuring SPDT contacts and 16A maximum switching current. The relay is housed in a compact package and is suitable for through hole PCB mounting or IC sockets.
24V coil voltage SPDT contact configuration Sealed construction Rated load: 16A 250VAC Maximum switching current: 16A Maximum switching voltage: 440VAC / 30VDC Maximum switching power: 3000VA Dimensions: 29 x 12.7 x 15.9mm (L x W x H)
Specification
| Ambient Temperature | -40°C to +105°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 1066Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPDT |
| Maximum Continuous Voltage | 31.2VDC |
| Maximum Switching Current | 16A |
| Maximum Switching Voltage | 440VAC / 30VDC |
| Mounting Type | PCB |
| Number of Contacts | 5 |
| Power Consumption | 0.53W |
| Terminal Type | Through Hole |
