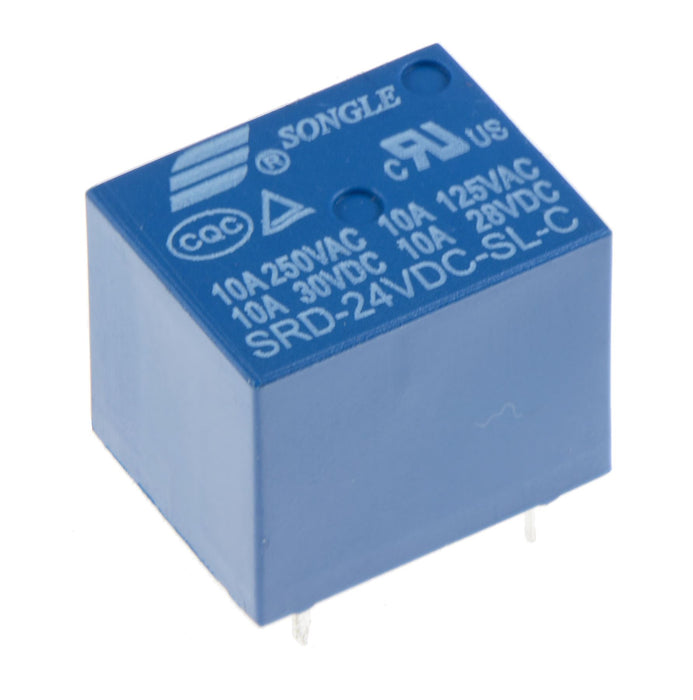

24V Mini Power Songle Relay SPDT 5-Pins

SKU 309017

MPN: 309017

397 in stock
Original price £0.65 - Original price £0.65
Original price
£0.65 Inc VAT
£0.65 - £0.65
Current price £0.65 Inc VAT
Automotive changeover relay with 4-pins and NO contacts suitable for automotive applications where a relay with a high current switching capability is required.

  • Metal mounting bracket
  • Maximum switching current: 70A
  • Maximum switching voltage: 60VDC
  • Coil voltage: 50VDC
  • Coil power: 1.8W
  • Sealed IP67 construction
  • NO contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 26.5 x 26.5 x 25.2mm
  • Specification
    Ambient temperature -25°C to +70°C
    Back order lead time 30 Days
    Coil resistance 90Ω
    Coil voltage 24VDC
    Contact arrangement SPDT
    Maximum continuous voltage 28.8VDC
    Maximum switching current 10A
    Maximum switching voltage 250VAC / 110VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.45W
    Terminal type Through Hole
