24V SPNO Heavy Duty Automotive Relay Bracket 100A MA504-124-A-T1
by Meishuo
SKU 490684
MPN: MA504-124-A-T1 100A
Availability:
Only 2 left!
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£0.00
-
£0.00
Current price
£0.00

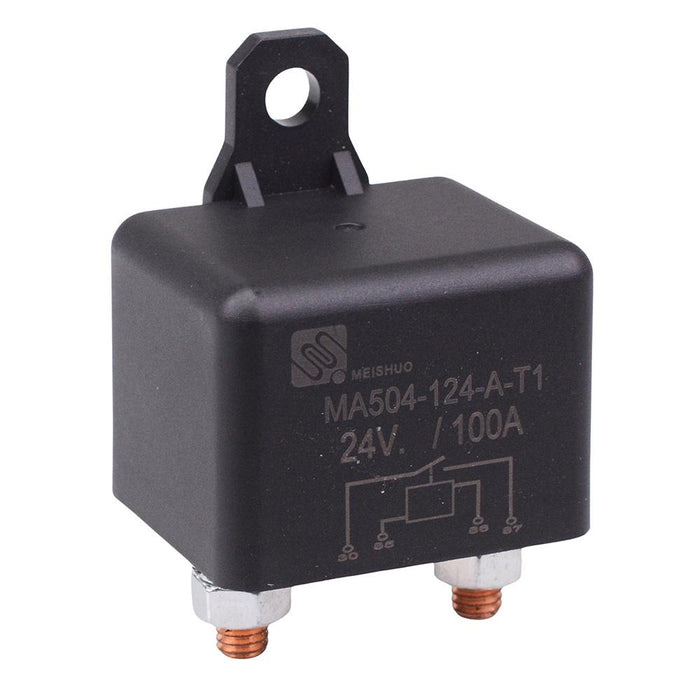

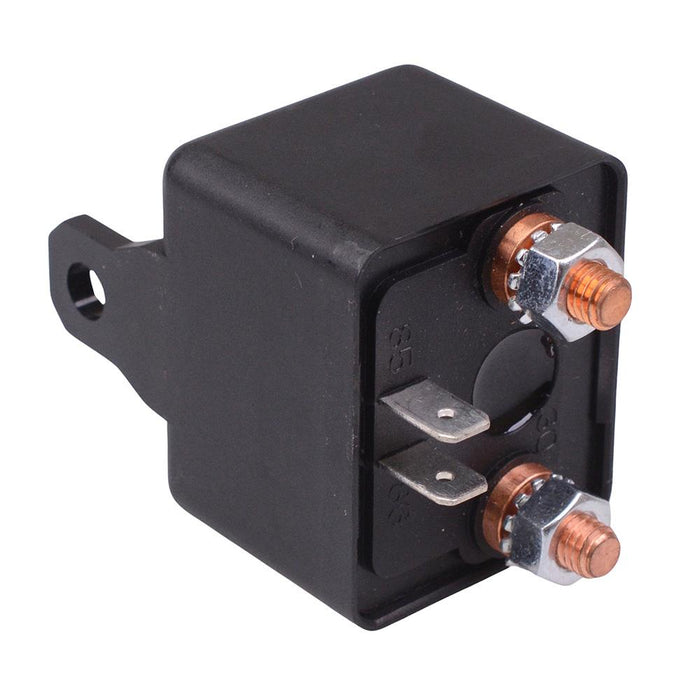

24V heavy duty automotive relay featuring SPNO contacts and 100A switching capability. The relay features 6.3mm quick connect and copper stud terminals, suitable for a wide range of automotive and marine applications.
Wide temperature range Switching current: 100A Coil voltage: 24VDC Coil power: 4.8W Contacts: SPNO Terminals: 6.3mm quick connect and copper stud Body dimensions: 44.8 x 37 x 33mm (width x depth x height)
Specification
Ambient Temperature | -40°C to +75°C |
Back Order Lead Time | 120 Days |
Coil Resistance | 120Ω |
Coil Voltage | 24VDC |
Contact Arrangement | SPNO |
Maximum Switching Current | 100A |
MOQ | 1 |
Mounting Type | Bracket |
Number of Contacts | 4 |
Power Consumption | 4.8W |
Terminal Type | M6 Stud / Quick Connect |
