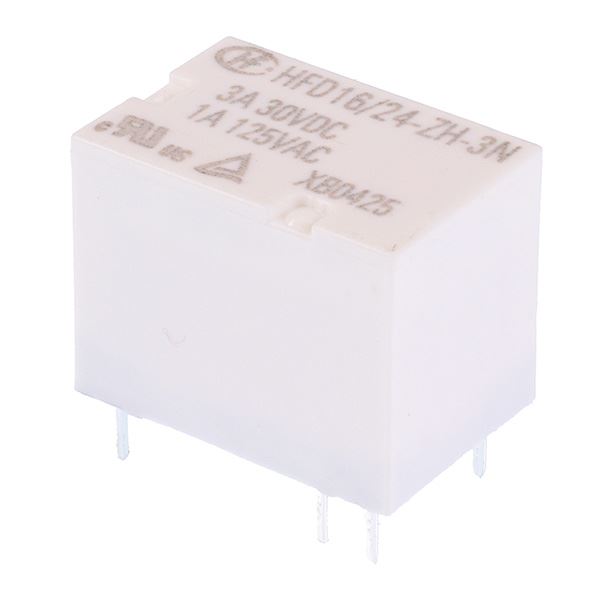

24V Subminiature Signal Relay 1A SPDT HFD-16/24-ZH-3N

by HongFa
SKU 483260

MPN: HFD-16/24-ZH-3N

499 in stock
Original price £1.13 - Original price £1.13
Original price
£1.13 Inc VAT
£1.13 - £1.13
Current price £1.13 Inc VAT
24V Subminiature sealed signal relay featuring SPDT contacts and 5A switching capablity suitable for PCB applications.

  • Coil Voltage: 24VDC
  • Contact rating: 1A 125VAC, 3A 30VDC
  • Coil power: 200mW
  • Sealed construction
  • Maximum Switching Current: 5A
  • 15.7 x 11.8 x 10.6mm
  • Maximum switching voltage: 250VAC, 220VDC
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 30 Days
    Coil resistance 2800Ω
    Coil voltage 24VDC
    Contact arrangement SPDT
    Maximum continuous voltage 31.2VDC
    Maximum switching current 8A
    Maximum switching voltage 250VAC / 220VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.2W
    Terminal type Through Hole
