24VAC 16A SPDT PCB Relay 40.61.8.024.0000
by Finder
SKU 485496
MPN: 40.61.8.024.0000
Availability:
20 in stock
Original price
£8.59
-
Original price
£8.59
Original price
£8.59
Inc VAT
£8.59
-
£8.59
Current price
£8.59
Inc VAT

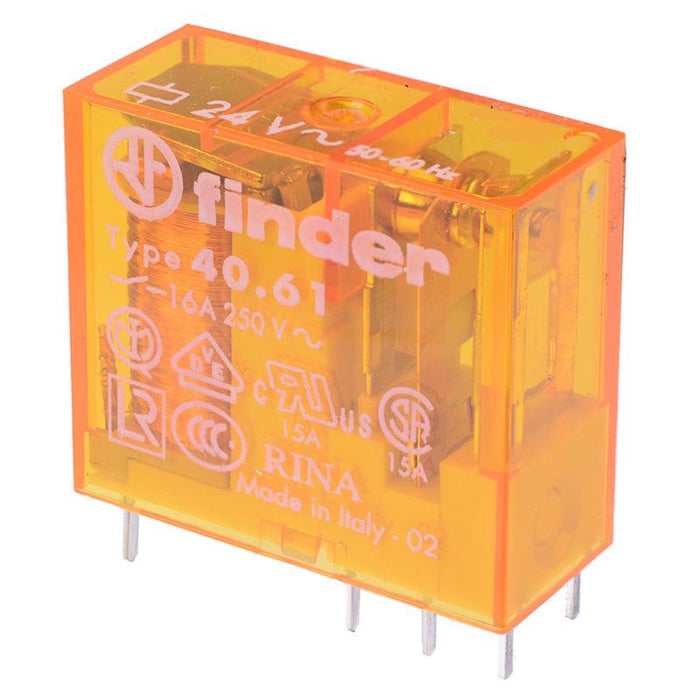

The 40.61.8.024.0000 is a 24VAC PCB or plug-in miniature relay from the Finder 40 series. The relay features SPDT contacts and a 16A contact rating. The relay meets UL, CSA and VDE standards, making them suitable for industrial, power management, automation & process control applications.
Contact configuration: SPDT Coil voltage: 24VAC Contact current: 16A PCB mount or plug-in Fits 95 series sockets 5mm contact pin pitch Dimensions: 29 x 12.4 x 25mm (length x width x height)
Specification
| Ambient temperature | -40°C to +85°C |
| Back order lead time | 5 Days |
| Coil resistance | 320Ω |
| Coil voltage | 24VAC |
| Contact arrangement | SPDT |
| Maximum switching current | 16A |
| Maximum switching voltage | 400VAC |
| Mounting type | PCB |
| Number of contacts | 8 |
| Power consumption | 1.2W |
| Terminal type | Through Hole |
