24VAC 8A DPDT PCB Relay 40.52.8.024.0000
by Finder
SKU 485495
MPN: 40.52.8.024.0000
Availability:
18 in stock
Original price
£7.39
-
Original price
£7.39
Original price
£7.39
£7.39
£7.39
-
£7.39
Current price
£7.39

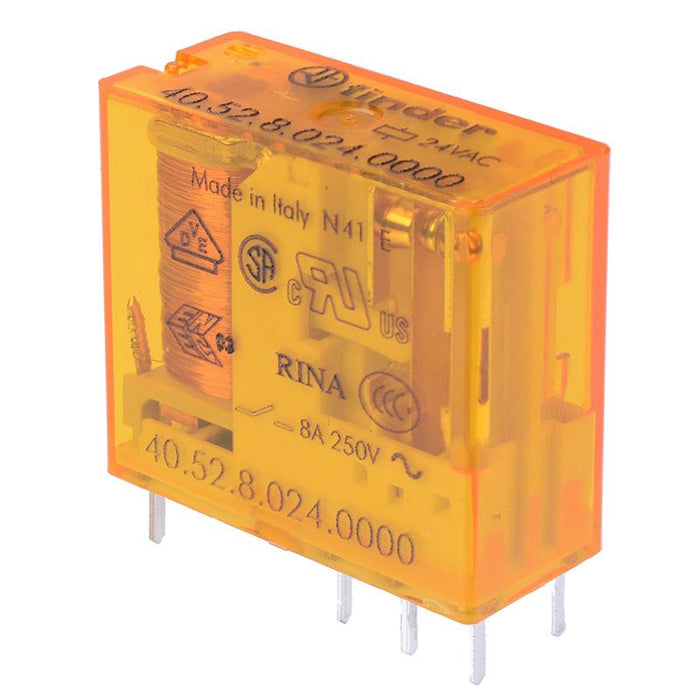

The 40.52.8.024.0000 is a 24VAC PCB or plug-in miniature relay from the Finder 40 series. The relay features DPDT contacts and a 8A contact rating. The relay meets UL, CSA and VDE standards, making them suitable for industrial, power management, automation & process control applications.
Contact configuration: DPDT Coil voltage: 24VAC Contact current: 8A PCB mount or plug-in Fits 95 series sockets 5mm contact pin pitch Dimensions: 29 x 12.4 x 25mm (length x width x height)
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 7 |
| Coil Resistance | 320Ω |
| Coil Voltage | 24VAC |
| Contact Arrangement | DPDT |
| Maximum Switching Current | 8A |
| Maximum Switching Voltage | 400VAC |
| MOQ | 1 |
| Mounting Type | PCB |
| Number of Contacts | 8 |
| Power Consumption | 1.2W |
| Terminal Type | Through Hole |
