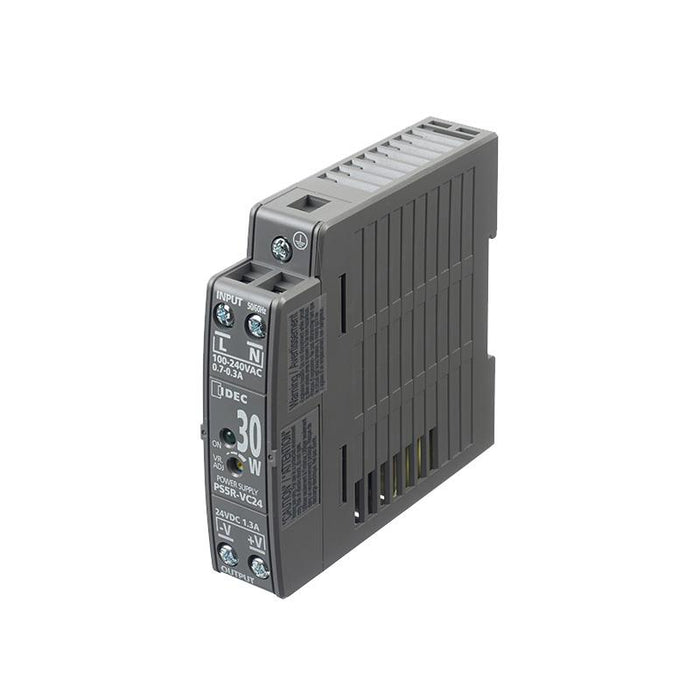

PS5R-VC24 24VDC 1.25A 30W DIN Rail Power Supply IDEC
by IDEC
SKU 485722
MPN: PS5R-VC24
Availability:
Only 3 left!
Original price
£32.82
-
Original price
£32.82
Original price
£32.82
£32.82
£32.82
-
£32.82
Current price
£32.82
The PS5R-VC24 is a 24V 30W DIN rail mount switching power supply with global approvals for both industrial and hazardous locations. The power supply features a wide operating temperature range and compact design preserving panel space.
Output voltage: 24VDC Output current: 1.25A Output capacity: 30W Input voltage: 85-264VAC / 100-370VDC Spring-up terminals accept ring & fork terminals Approved for use in Class I Division 2 hazardous locations Can be installed in 6 directions Overcurrent protection with auto-reset Five-year factory warranty Dimensions: 95 x 90 x 22.5mm (Depth x Height x Width)
Specification
| Back Order Lead Time | 120 |
| Input Voltage | 85-264VAC / 100-370VDC |
| MOQ | 1 |
| Output Connector | Terminal Block |
| Output Current | 1.25A |
| Output Voltage | 24VDC |
| Over Current Protection | Yes |
| Power Rating | 30W |
