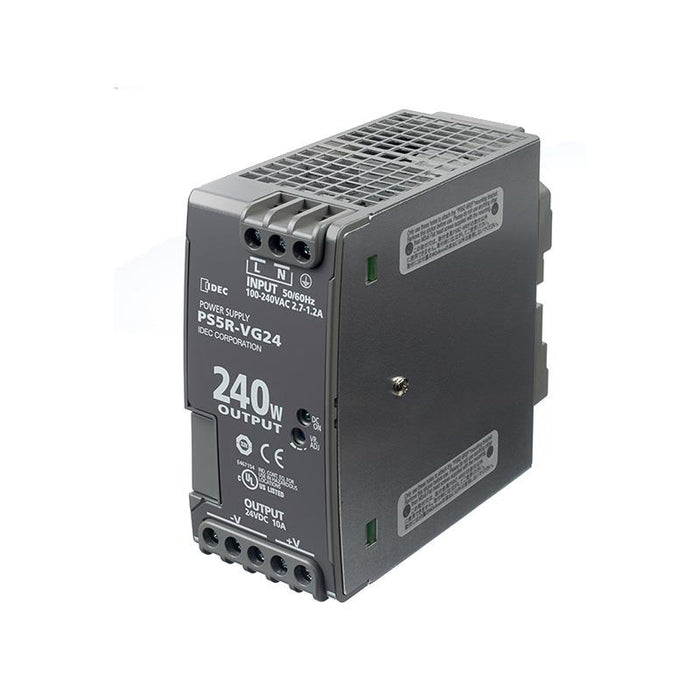

PS5R-VG24 24VDC 10A 240W DIN Rail Power Supply IDEC
by IDEC
SKU 485726
MPN: PS5R-VG24
Availability:
Only 2 left!
Original price
£113.27
-
Original price
£113.27
Original price
£113.27
£113.27
£113.27
-
£113.27
Current price
£113.27
The PS5R-VG24 is a 24V 240W DIN rail mount switching power supply with global approvals for both industrial and hazardous locations. The power supply features a wide operating temperature range and compact design preserving panel space.
Output voltage: 24VDC Output current: 10A Output capacity: 240W Input voltage: 85-264VAC / 100-370VDC Spring-up terminals accept ring & fork terminals Approved for use in Class I Division 2 hazardous locations Can be installed in 6 directions Overcurrent protection with auto-reset Five-year factory warranty Dimensions: 130.5 x 125 x 60mm (Depth x Height x Width)
Specification
| Back Order Lead Time | 120 |
| Input Voltage | 85-264VAC / 100-370VDC |
| MOQ | 1 |
| Output Connector | Terminal Block |
| Output Current | 10A |
| Output Voltage | 24VDC |
| Over Current Protection | Yes |
| Power Rating | 240W |
