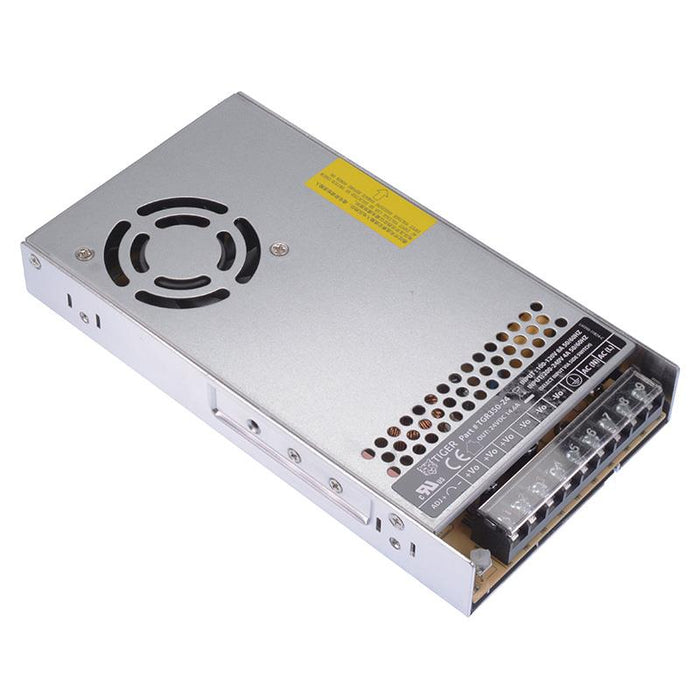

24VDC 14.6A 350W Industrial Enclosed Power Supply

SKU 484310

MPN: 484310

Availability:
Only 3 left!
Original price £43.35 - Original price £43.35
Original price
£43.35 Inc VAT
£43.35 - £43.35
Current price £43.35 Inc VAT
350W 24VDC enclosed AC-DC switching power supply featuring selectable AC input and accepts DC input at the same time. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.

  • Power: 350W
  • Nominal output: 24VDC / 14.6A
  • Output voltage adjustable range: 21.6-28.8VDC
  • AC Input voltage: 90-132VAC / 180-264VAC
  • DC Input voltage: 240-373VDC
  • Compact size with 1U low profile
  • LED indicator for power on
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Safety according to IEC/EN/UL62368, EN60335, GB4943
  • Dimensions: 215 x 115 x 30mm
  • Specification
    Back order lead time 5 Days
    Input frequency 47-63Hz
    Input voltage 90-132VAC / 180-264VAC / 240-373VDC
    Maximum temperature 70°C
    Output connector Terminal Block
    Output current 14.6A
    Output voltage 24VDC
    Over current protection Yes
    Over temperature protection Yes
    Over voltage protection Yes
    Power rating 350W
    Short circuit protection Yes
