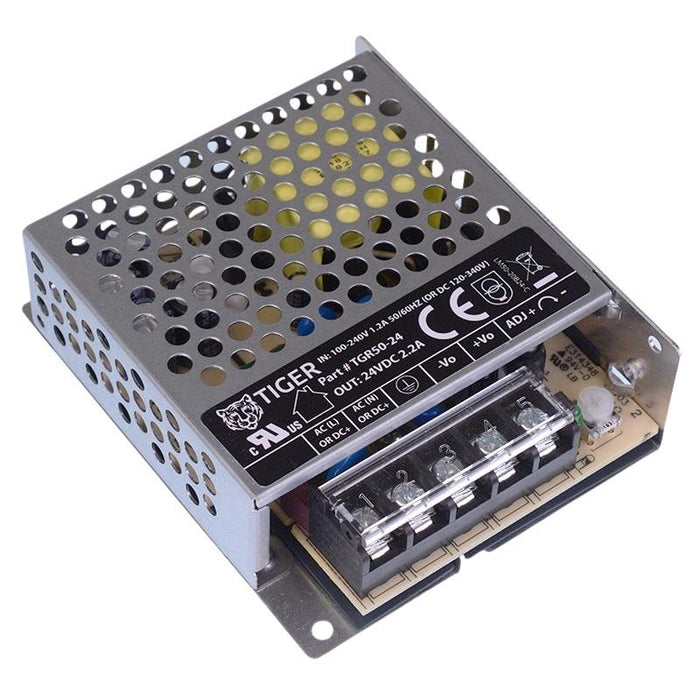

24VDC 2.2A 50W Industrial Enclosed Power Supply
SKU 484416
MPN: 484416
Availability:
Out of stock
Sold out
Original price
£14.99
-
Original price
£14.99
Original price
£14.99
£14.99
-
£14.99
Current price
£14.99
50W 24VDC enclosed AC-DC switching power supply featuring selectable AC input and accepts DC input at the same time. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.
Power: 50W Nominal output: 24VDC / 2.2A Output voltage adjustable range: 21.6-28.8VDC AC Input voltage: 85-264VAC DC Input voltage: 120-373VDC Low standby power consumption, high efficiency Output short circuit, over-current, over-voltage protection IEC/EN/UL62368, IEC/EN60335, GB4943, IEC/EN61558 safety approval Dimensions: 92.5 x 82 x 30mm (Length x Width x Height)
Specification
Ambient Temperature | -30°C to 70°C |
Back Order Lead Time | 5 Days |
Input Frequency | 47-63Hz |
Input Voltage | 85-264VAC / 120-373VDC |
Output Connector | Terminal Block |
Output Current | 2.2A |
Output Voltage | 24VDC |
Over Current Protection | Yes |
Over Voltage Protection | Yes |
Power Rating | 50W |
Short Circuit Protection | Yes |
