24VDC 25A 600W Industrial Enclosed Power Supply
SKU 484421
MPN: 484421
Availability:
Out of stock
Sold out
Original price
£90.92
-
Original price
£90.92
Original price
£90.92
£90.92
-
£90.92
Current price
£90.92

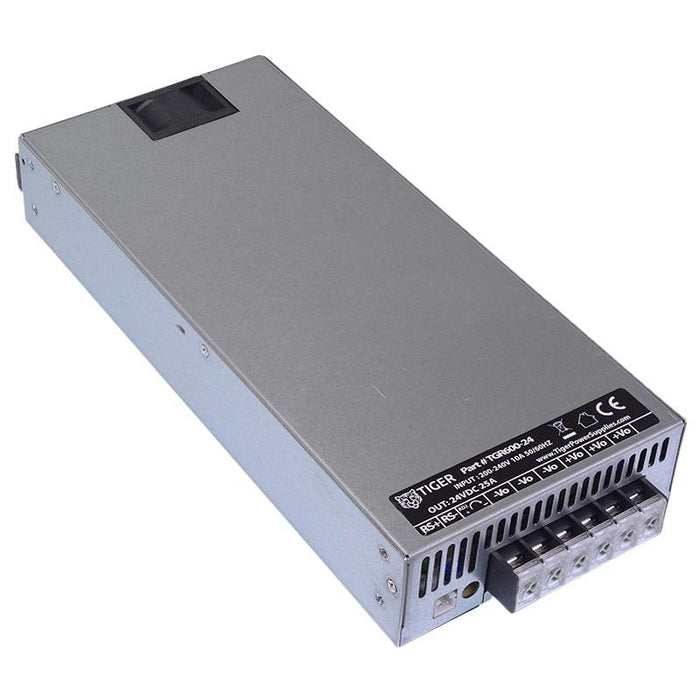

600W 24VDC enclosed AC-DC switching power supply featuring a built-in DC fan and accepts AC or DC input. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.
Power: 600W Nominal output: 24VDC / 25A Output voltage adjustable range: 22-26.4VDC AC Input voltage: 176-264VAC DC Input voltage: 240-373VDC Low standby power consumption, high efficiency Output short circuit, over-current, over-voltage, over-temperature protection LED indicators for power On Meets IEC/ EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards Dimensions: 267.3 x 106 x 40mm (Length x Width x Height)
Specification
| Ambient Temperature | -30°C to 60°C |
| Back Order Lead Time | 5 Days |
| Input Frequency | 47-63Hz |
| Input Voltage | 176-264VAC / 240-373VDC |
| Output Connector | Terminal Block |
| Output Current | 25A |
| Output Voltage | 24VDC |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Over Voltage Protection | Yes |
| Power Rating | 600W |
| Short Circuit Protection | Yes |
