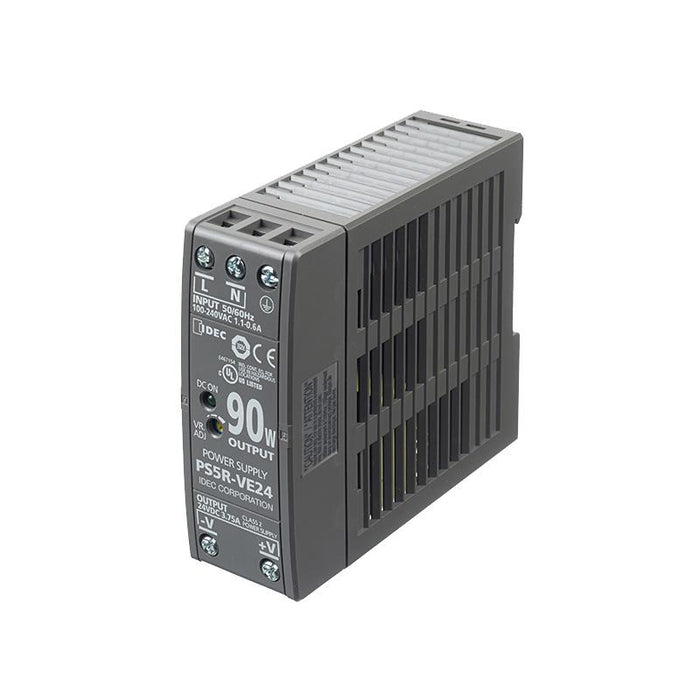

24VDC 3.75A 90W DIN Rail Power Supply IDEC PS5R-VE24

The PS5R-VE24 is a 24V 90W DIN rail mount switching power supply with global approvals for both industrial and hazardous locations. The power supply features a wide operating temperature range and compact design preserving panel space.

Output voltage: 24VDC

Output current: 3.75A

Output capacity: 90W

Input voltage: 85-264VAC / 100-370VDC

Spring-up terminals accept ring & fork terminals

Approved for use in Class I Division 2 hazardous locations

Can be installed in 6 directions

Overcurrent protection with auto-reset

Five-year factory warranty

Dimensions: 108 x 95 x 36mm (Depth x Height x Width)
