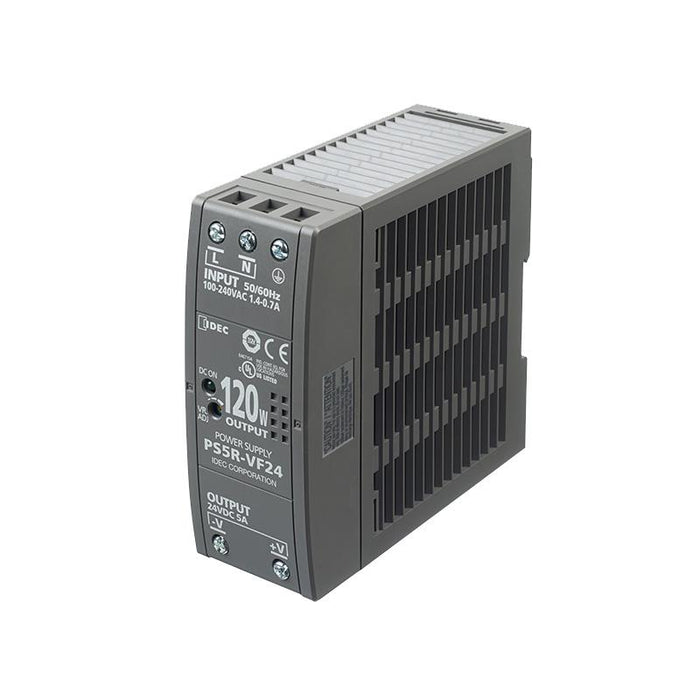

PS5R-VF24 24VDC 5A 120W DIN Rail Power Supply IDEC
by IDEC
SKU 485725
MPN: PS5R-VF24
Availability:
Only 2 left!
Original price
£89.34
-
Original price
£89.34
Original price
£89.34
£89.34
-
£89.34
Current price
£89.34
The PS5R-VF24 is a 24V 120W DIN rail mount switching power supply with global approvals for both industrial and hazardous locations. The power supply features a wide operating temperature range and compact design preserving panel space.
Output voltage: 24VDC Output current: 5A Output capacity: 120W Input voltage: 85-264VAC / 100-370VDC Spring-up terminals accept ring & fork terminals Approved for use in Class I Division 2 hazardous locations Can be installed in 6 directions Overcurrent protection with auto-reset Five-year factory warranty Dimensions: 121 x 115 x 46mm (Depth x Height x Width)
Specification
| Back Order Lead Time | 10 Days |
| Input Voltage | 85-264VAC / 100-370VDC |
| Output Connector | Terminal Block |
| Output Current | 5A |
| Output Voltage | 24VDC |
| Over Current Protection | Yes |
| Power Rating | 120W |
