24VDC 60W Slim DIN Rail Power Supply
SKU 490358
MPN: YSD60L-24
Availability:
25 in stock
Original price
£23.04
-
Original price
£23.04
Original price
£23.04
£23.04
-
£23.04
Current price
£23.04

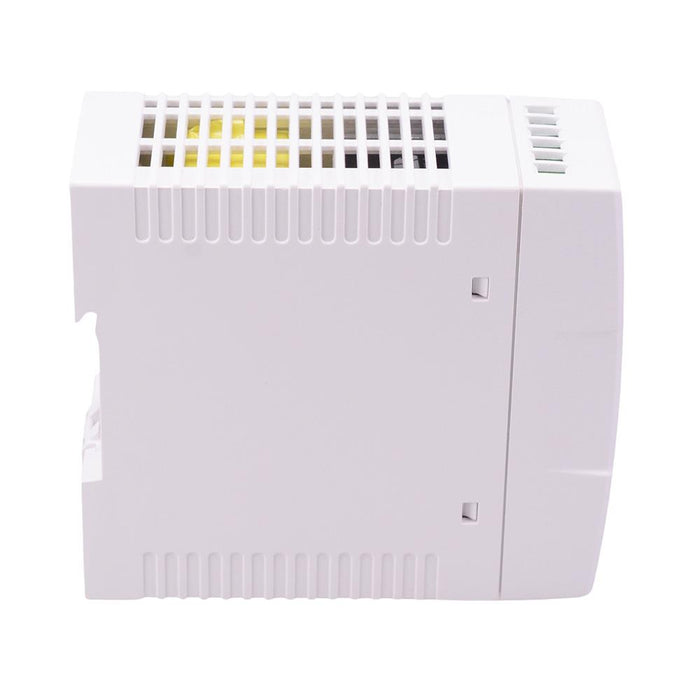

60W DIN rail power supply featuring a slim plastic housing and 12VDC 5A output. The power supply features an adjustable DC output voltage and DC OK signal output. The power supply comes with short-circuit, over-voltage and overload protection. Widely used for industrial automation, control systems, various other equipment and machines.
Input voltage: 90-264VAC, 127-370VDC Output voltage: 12VDC Adjustable range: 12-14VDC Output current: 5A Power: 60W Dimensions: 92 x 41 x 100mm (height x width x depth) Complies with CE, UKCA, UL508 3 year warranty
Specification
Back Order Lead Time | 120 Days |
Input Frequency | 47-63Hz |
Input Voltage | 90-264VAC, 127-370VDC |
Maximum Temperature | 70°C |
MOQ | 1 |
Output Current | 5A |
Output Voltage | 24VDC |
Over Current Protection | Yes |
Over Voltage Protection | Yes |
Power Rating | 60W |
Short Circuit Protection | Yes |
