25-Way Right Angle PCB Female D Socket Connector
SKU 480190
MPN: 480190
Availability:
657 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
£0.81
£0.81
-
£0.81
Current price
£0.81

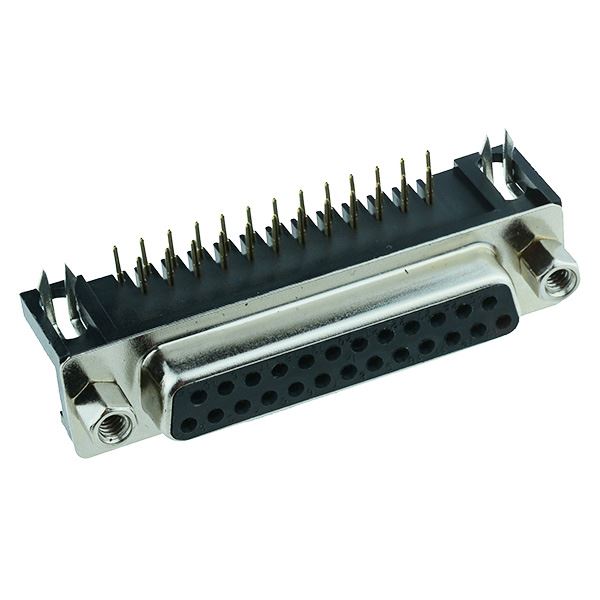

Right angle D socket with 25 ways suitable for PCB mounting. The connector features a 2.77mm pitch and solder termination.
25 ways Right angle orientation Fixing centres: 47.04mm Width: 53.04mm Housing material: PBT+30% glass fiber (UL94V-0) Contact material: brass or phosphor bronze Jack posts and PCB locating spigots
Specification
| Back Order Lead Time | 150 |
| Contact Material | Gold Plated Brass |
| Contact Pitch | 2.77mm |
| Gender | Male |
| Housing Material | PBT |
| MOQ | 1 |
| Mounting Hole Pitch | 47.04mm |
| Mounting Type | PCB |
| Number of Ways | 25 |
| Operating Temperature | -55°C to +105°C |
| Termination Method | Solder |
