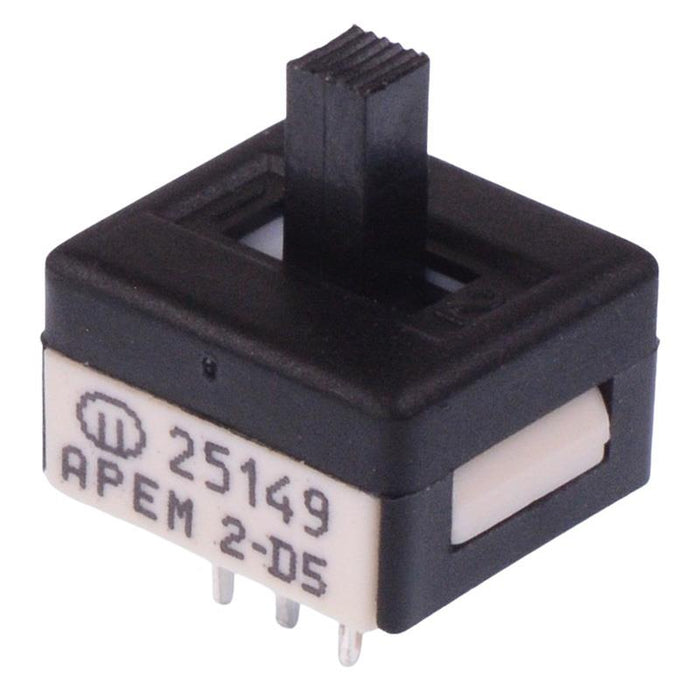

25149NAH6 APEM On-Off-On Professional PCB Slide Switch High Actuator DPDT
by APEM
SKU 487402
MPN: 25149NAH6
Availability:
287 in stock
Original price
£4.02
-
Original price
£4.02
Original price
£4.02
£4.02
£4.02
-
£4.02
Current price
£4.02
The 25149NAH6 is a professional grade slide switch manufactured by APEM, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
DPDT contacts On-Off-On operation 2.54mm terminal spacing Silver contacts 2.8mm high actuator Rating: 1A 30VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 10,000 Cycles |
| Material | PBT |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Product Series | 25000N |
| Switch Operation | On-Off-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
