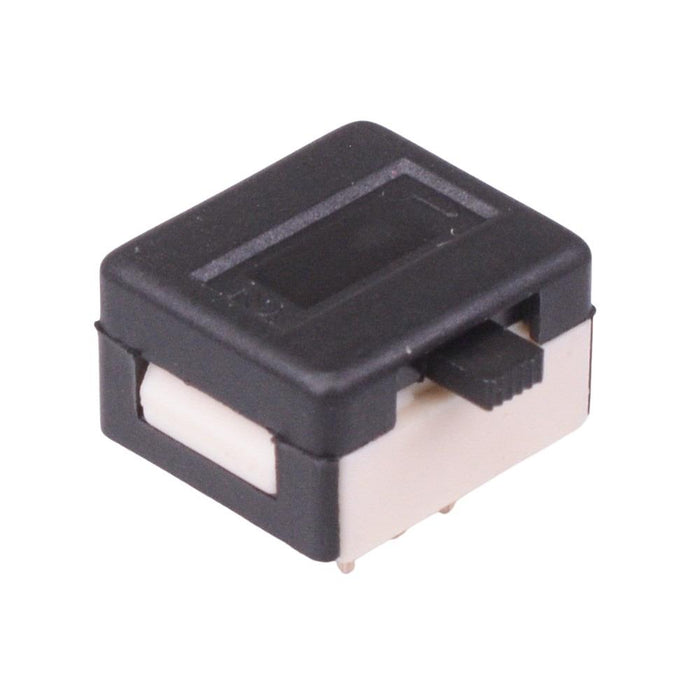

25349NA APEM On-Off-On Professional Horizontal PCB Slide Switch DPDT APEM
by APEM
SKU 489805
MPN: 25349NA
Availability:
Only 1 left!
Original price
£4.90
-
Original price
£4.90
Original price
£4.90
£5.55
£5.55
-
£5.55
Current price
£5.55

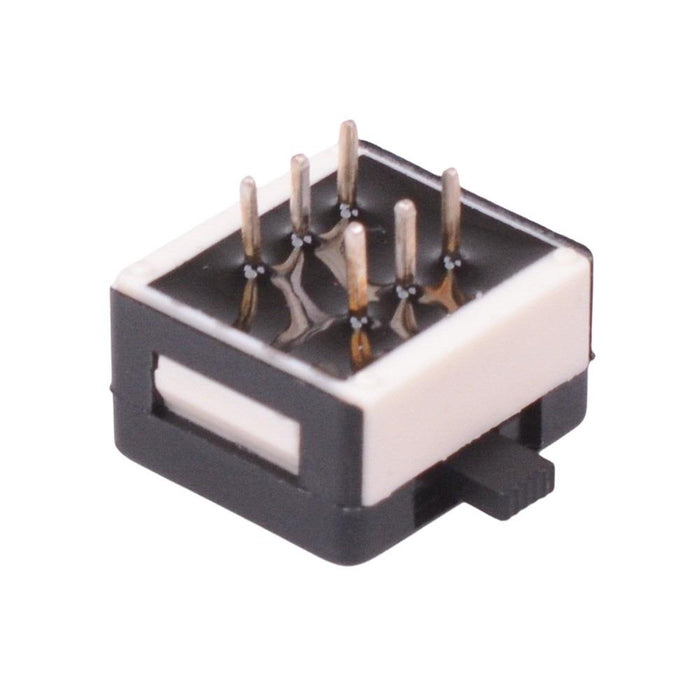

The 25349NA is a professional grade slide switch manufactured by APEM, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
DPDT contacts On-Off-On operation 2.54mm terminal spacing Silver contacts 2.3mm side actuator Rating: 100mA 30VDC
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 10,000 Cycles |
| Material | PBT |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 5.08mm |
| Product Series | 25000N |
| Switch Operation | On-Off-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
