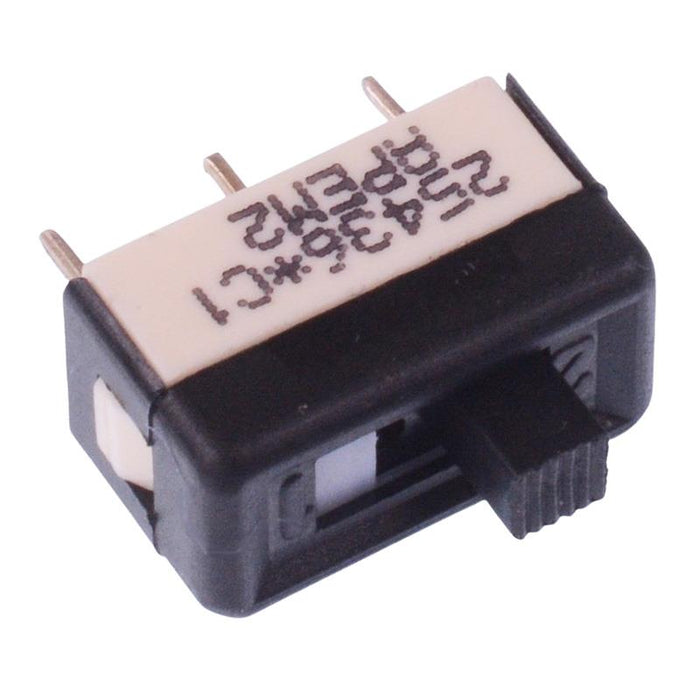

25436NAHX693UL APEM On-On Professional PCB Slide Switch High Actuator SPDT
by APEM
SKU 487295
MPN: 25436NAHX693UL
Availability:
888 in stock
Original price
£3.44
-
Original price
£3.44
Original price
£3.44
£3.44
£3.44
-
£3.44
Current price
£3.44
The 25436NAHX693UL is a professional grade slide switch manufactured by APEM, featuring SPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
SPDT contacts On-On operation 5.08mm terminal spacing Silver contacts 2.8mm high actuator Rating: 1A 30VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 10,000 Cycles |
| Material | PBT |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 5.08mm |
| Product Series | 25000N |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
