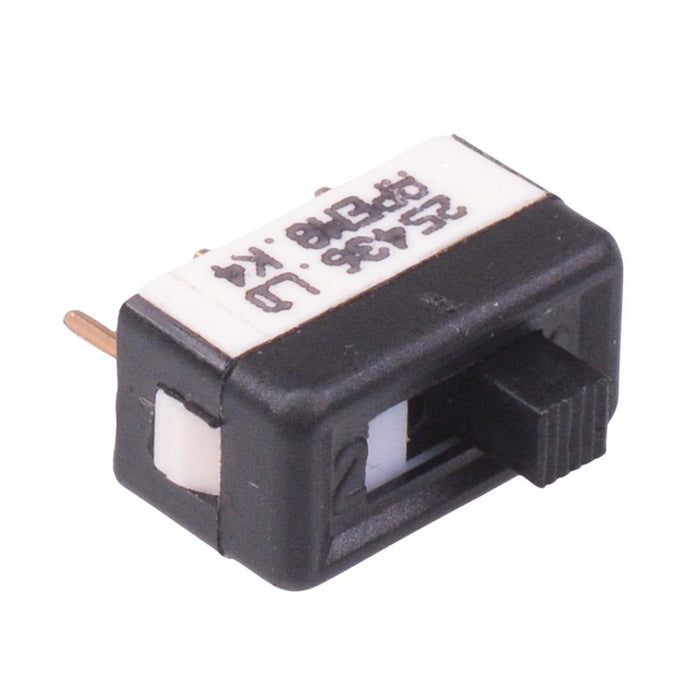

25436NLDH On-On Professional PCB Slide Switch High Actuator SPDT APEM
by APEM
SKU 489808
MPN: 25436NLDH
Availability:
9 in stock
Original price
£3.71
-
Original price
£3.71
Original price
£3.71
£3.71
£3.71
-
£3.71
Current price
£3.71
The 25436NLDH is a professional grade slide switch manufactured by APEM, featuring SPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
SPDT contacts On-On operation 5.08mm terminal spacing Silver contacts 2.3mm high actuator Rating: 100mA 30VDC
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 10,000 Cycles |
| Material | PBT |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Product Series | 25000N |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
