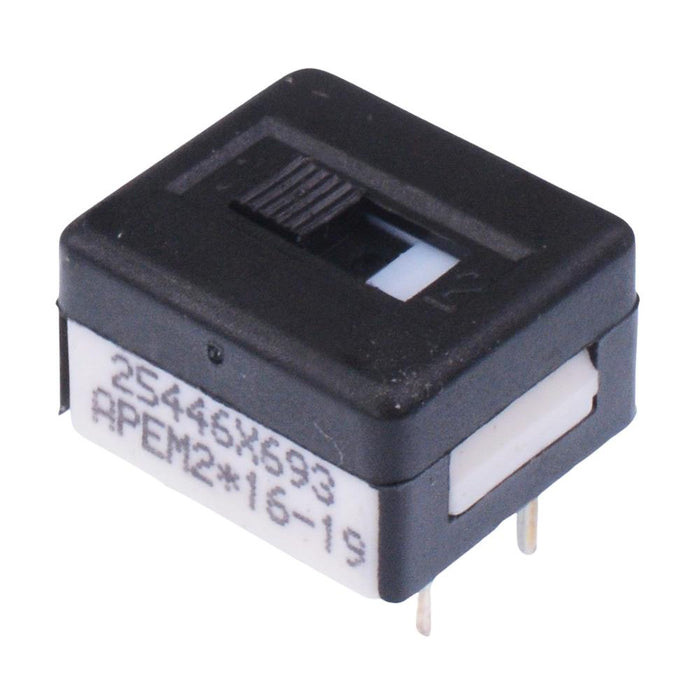

25446NABX693UL APEM On-On Professional PCB Slide Switch Flush Actuator DPDT

SKU 488141

MPN: 25446NABX693UL

30 in stock
Original price £3.87 - Original price £3.87
Original price
£3.87 Inc VAT
£3.87 - £3.87
Current price £3.87 Inc VAT
The 25446NABX693UL is a professional grade slide switch manufactured by APEM, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.

  • DPDT contacts
  • On-On operation
  • 5.08mm terminal spacing
  • Silver contacts
  • Flush actuator
  • Rating: 1A 30VDC
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Silver
    Contact rating 1A 30VDC
    Current rating 1A
    Electrical life 10,000 Cycles
    Material PBT
    Mounting style PCB
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Pitch 5.08mm
    Product series 25000N
    Switch operation On-On
    Terminal type PCB
    Voltage rating 30VDC
