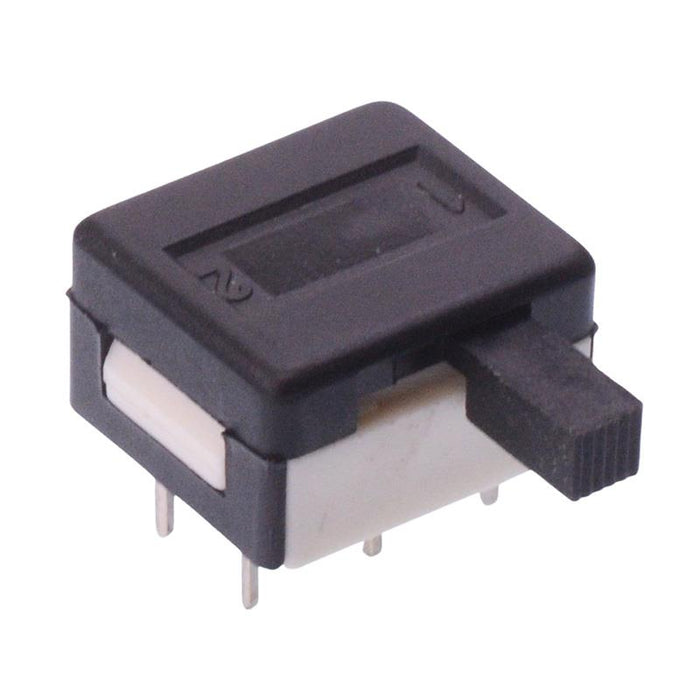

25546NA6 APEM On-On Professional Horizontal PCB Slide Switch Long Actuator DPDT
by APEM
SKU 487282
MPN: 25546NA6
Availability:
672 in stock
Original price
£4.25
-
Original price
£4.25
Original price
£4.25
£4.25
£4.25
-
£4.25
Current price
£4.25
The 25546NA6 is a professional grade horizontal slide switch manufactured by APEM, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
DPDT contacts On-On operation 5.08mm terminal spacing Silver contacts 6mm long actuator Rating: 1A 30VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 10,000 Cycles |
| Material | PBT |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 5.08mm |
| Product Series | 25000N |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
