25mm Arc Lever V3 Microswitch SPDT 16A 250VAC
SKU 481681
MPN: 481681
Availability:
99 in stock
Original price
£0.94
-
Original price
£0.94
Original price
£0.94
£0.94
-
£0.94
Current price
£0.94

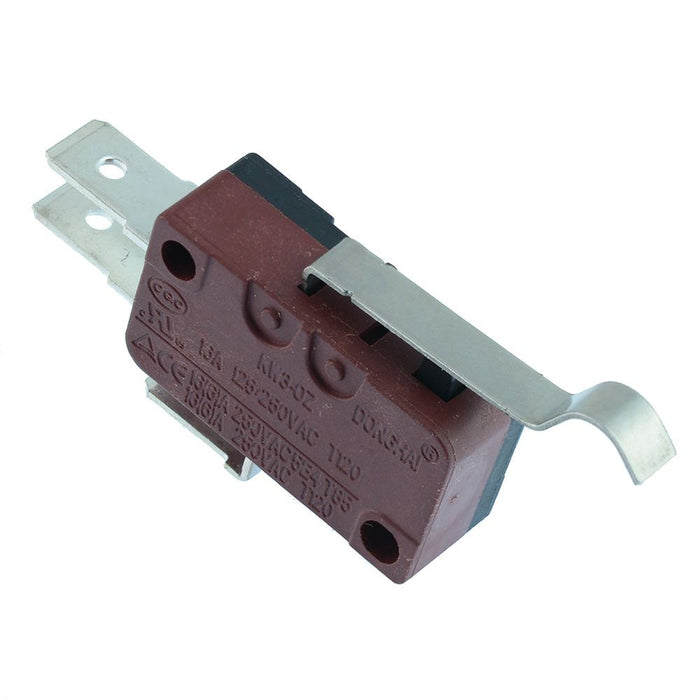

V3 microswitch featuring a 25mm length arc lever actuator and SPDT contacts. The switch features quick connect terminals and is suitable for domestic and industrial applications.
25mm length arc lever actuator Rating: 16A 250VAC NO / NC contacts 6.3mm quick connect terminals Operating force: 5N max Body dimensions: 28 x 10.4 x 15.8mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Electrical Life | 50,000 Cycles |
| Number of Positions | 2 |
| Operating Force | 5N Max |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
