2636LH/2A20000L0 APEM On-On Industrial Rocker Switch SPDT 16A

by APEM
SKU 487679

MPN: 2636LH/2A20000L0

Back Order Availability: 10 Days

Availability:
196 in stock, ready to be shipped
Original price £4.85 - Original price £4.85
Original price
£4.85 Inc VAT
£4.85 - £4.85
Current price £4.85 Inc VAT

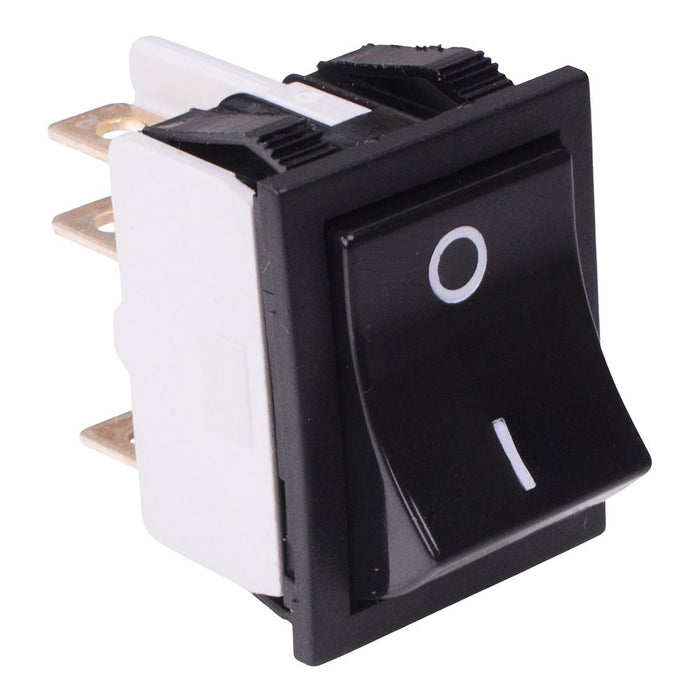

The 2636LH/2A20000L0 is an industrial rocker switch manufactured by APEM, featuring SPDT contacts and a 16A current rating. The switch features quick connect terminals and is suitable for panel applications requiring a high performance reliable switch.

  • On-On operation
  • SPDT contacts
  • 6.35mm quick connect terminals
  • Silver contacts
  • Panel cut-out: 22 x 30mm
  • Panel thickness: 0.8-4mm
  • Rating: 16A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Silver
    Contact rating 16A 250VAC
    Current rating 16A
    Electrical life 10,000 Cycles
    Illuminated No
    Material Polyamide
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -20°C to +85°C
    Panel cut out 30 x 22mm
    Panel thickness 0.8-4mm
    Switch operation On-On
    Terminal type Quick Connect
    Voltage rating 250VAC
