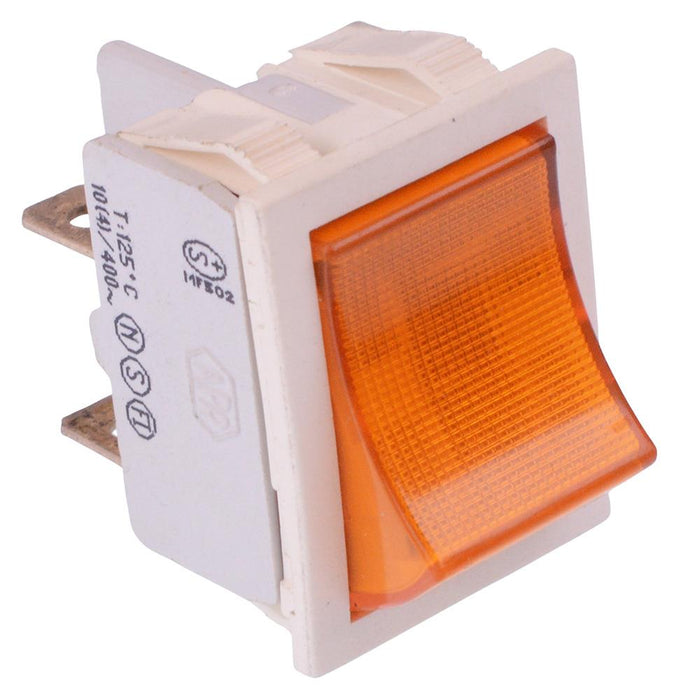

2641LH/2A713900L220V APEM 220V Orange illuminated On-Off Industrial Rocker Switch DPST 16A
by APEM
SKU 488045
MPN: 2641LH/2A713900L220V
Availability:
31 in stock
Original price
£4.20
-
Original price
£4.20
Original price
£4.20
£4.20
-
£4.20
Current price
£4.20
The 2641LH/2A713900L220V is an industrial rocker switch manufactured by APEM, featuring DPST contacts and a 16A current rating. The switch features quick connect terminals and is suitable for panel applications requiring a high performance reliable switch.
White frame Orange 220V illumination On-Off operation DPST contacts 6.35mm quick connect terminals Silver contacts Panel cut-out: 22 x 30mm Panel thickness: 0.8-4mm Rating: 16A 250VAC
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Colour | Orange |
Contact Configuration | DPST |
Contact Material | Silver |
Contact Rating | 16A 250VAC |
Current Rating | 16A |
Electrical Life | 10,000 Cycles |
Illuminated | Yes |
Illumination Colour | Orange |
Illumination Voltage | 220VAC |
Material | Polyamide |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -20°C to +85°C |
Panel Cut Out | 30 x 22mm |
Panel Thickness | 0.8-4mm |
Switch Operation | On-Off |
Terminal Type | Quick Connect |
Voltage Rating | 250VAC |
