2641LH/A216L220V APEM 220V Red illuminated On-Off Industrial Rocker Switch DPST 16A
by APEM
SKU 487823
MPN: 2641LHA216L220V
Availability:
47 in stock
Original price
£5.63
-
Original price
£5.63
Original price
£5.63
Inc VAT
£5.63
-
£5.63
Current price
£5.63
Inc VAT

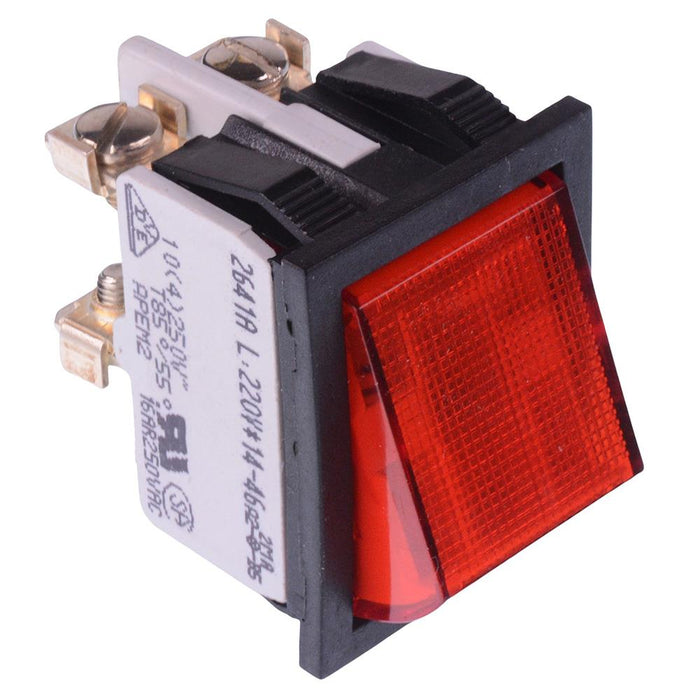

The 2641LH/A216L220V is an industrial rocker switch manufactured by APEM, featuring DPST contacts and a 16A current rating. The switch features screw terminals and is suitable for panel applications requiring a high performance reliable switch.
Red 220V illumination On-Off operation DPST contacts Screw+clamp terminals Silver contacts Panel cut-out: 22 x 30mm Panel thickness: 0.8-4mm Rating: 16A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | DPST |
| Contact material | Silver |
| Contact rating | 16A 250VAC |
| Current rating | 16A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 220VAC |
| Material | Polyamide |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -20°C to +85°C |
| Panel cut out | 30 x 22mm |
| Panel thickness | 0.8-4mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
