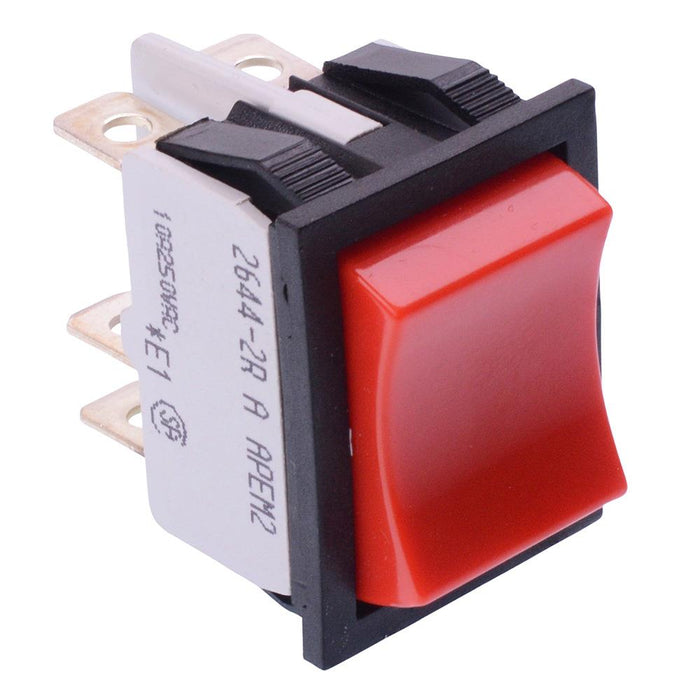

2644LH2R2A236000 APEM Red On-On-On Industrial Rocker Switch DPDT 10A
by APEM
SKU 487869
MPN: 2644LH2R2A236000
Availability:
37 in stock
Original price
£5.29
-
Original price
£5.29
Original price
£5.29
Inc VAT
£5.29
-
£5.29
Current price
£5.29
Inc VAT
The 2644LH2R2A236000 is an industrial rocker switch manufactured by APEM, featuring DPDT contacts and a 10A current rating. The switch features quick connect terminals and is suitable for panel applications requiring a high performance reliable switch.
Red rocker On-On-On operation DPDT contacts 6.35mm quick connect terminals Silver contacts Panel cut-out: 22 x 30mm Panel thickness: 0.8-4mm Rating: 10A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 10A 250VAC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | Polyamide |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -20°C to +85°C |
| Panel cut out | 30 x 22mm |
| Panel thickness | 0.8-4mm |
| Switch operation | On-On-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
