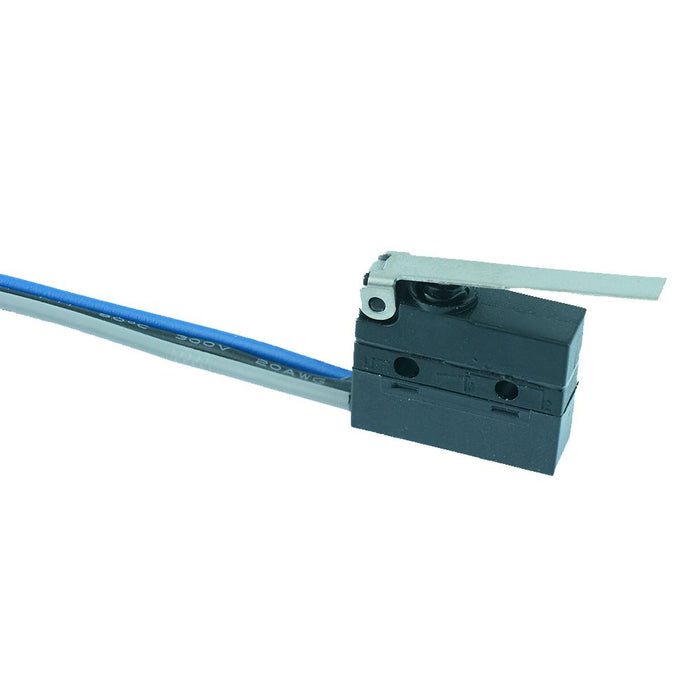

26mm Lever Waterproof Prewired Microswitch SPDT 3A IP67
SKU 481699
MPN: 481699
Availability:
97 in stock
Original price
£3.18
-
Original price
£3.18
Original price
£3.18
£3.18
£3.18
-
£3.18
Current price
£3.18
Miniature microswitch featuring a 26mm lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features 500mm flying leads and is suitable for domestic and industrial applications.
25.8mm lever actuator Rating: 3A 250VAC / 48VDC NO / NC contacts 500mm 20AWG flying leads Operating force: 85gf max Release force: 13gf min Pre-travel: 6.3mm max Over-travel 1mm min Differential travel: 1mm max Body dimensions: 19.9 x 6.4 x 15.4mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| MOQ | 1 |
| Number of Positions | 2 |
| Operating Force | 85gf Max |
| Protection Level | IP67 |
| Release Force | 13gf Min |
| Terminal Type | Leads |
| Voltage Rating | 250VAC |
