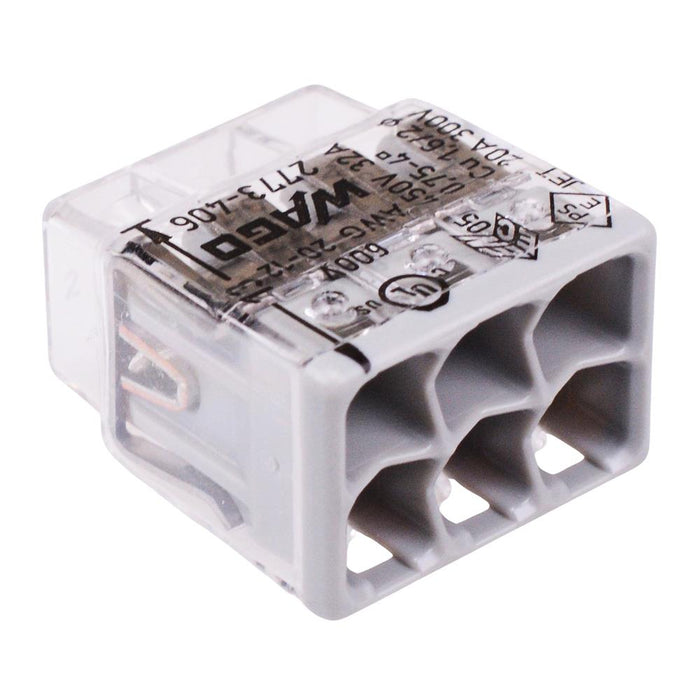

2773-406 WAGO Compact 6 Way Push Wire Connector 32A

by Wago
SKU 489326

MPN: 2773-406

500 in stock
Original price £0.71 - Original price £0.71
Original price
£0.71 Inc VAT
£0.71 - £0.71
Current price £0.71 Inc VAT
The 2773-406 is a 6 way terminal block by Wago featuring a more compact design than the 2273 series and push-in termination for solid and stranded conductors. The connectors are compatible up to 4mm2 cable size and feature a transparent housing showing that the conductor is fully inserted.The connectors are rated up to 32A 450V and meet most major approvals.

  • Voltage rating: 450V
  • Current rating: 32A
  • Solid conductor: 20-12AWG 0.75-4mm2
  • Stranded conductor: 18-12AWG 1.5mm-4mm2
  • Strip length: 13mm
  • CB, UL, ENEC, KEMA approved
  • Specification
    Back order lead time 5 Days
    Colour Grey
    Contact material Copper
    Current rating 32A
    Housing material PC
    Mounting type Cable Mount
    Number of ways 6
    Operating temperature 85°C Maximum
    Termination method Push In
    Voltage rating 450V
    Wire range 0.75-4mm²
    Request a quote
