27mm Lever V3 Microswitch SPDT 16A 250VAC
SKU 481682
MPN: 481682
Availability:
Out of stock
Sold out
Original price
£1.03
-
Original price
£1.03
Original price
£1.03
£1.03
£1.03
-
£1.03
Current price
£1.03

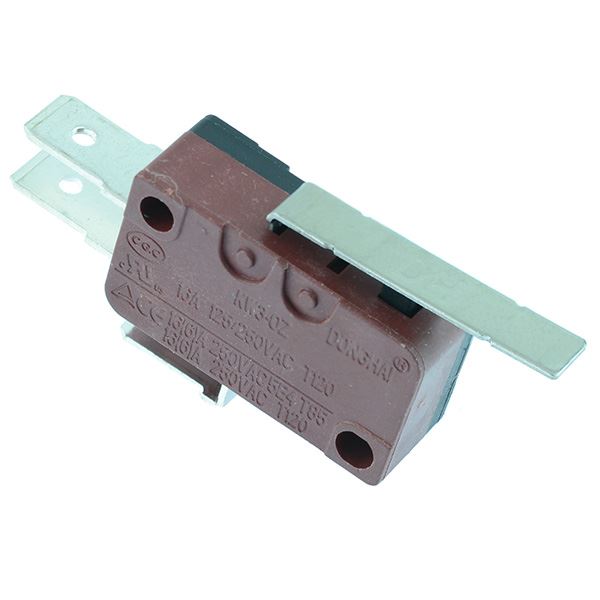

V3 microswitch featuring a 27mm length lever actuator and SPDT contacts. The switch features quick connect terminals and is suitable for domestic and industrial applications.
27mm length lever actuator Rating: 16A 250VAC NO / NC contacts 6.3mm quick connect terminals Operating force: 4.5N max Body dimensions: 28 x 10.4 x 15.8mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 16A 250VAC |
| Current Rating | 16A |
| Electrical Life | 50,000 Cycles |
| MOQ | 1 |
| Number of Positions | 2 |
| Operating Force | 4.5N Max |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
