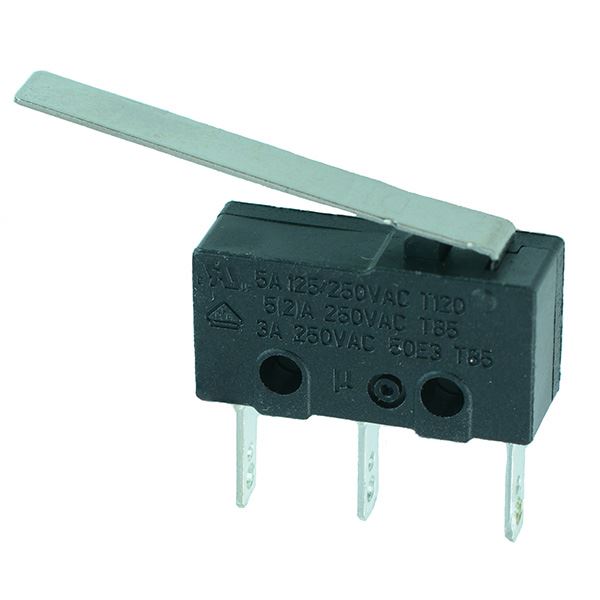

29mm Lever V4 Miniature Microswitch SPDT 5A
SKU 481690
MPN: 481690
Availability:
1173 in stock
Original price
£0.61
-
Original price
£0.61
Original price
£0.61
£0.61
£0.61
-
£0.61
Current price
£0.61
Miniature microswitch featuring a 29mm lever actuator housed in a compact package capable of switching up to 5A. The switch features SPDT contacts and quick connect terminals making them useful for a wide range of applications including industrial and domestic.
29mm lever actuator Rating: 5A 250VAC NO / NC contacts 2.8mm quick connect terminals Operating force: 4.5N max Body dimensions: 19.9 x 6.7 x 10.4mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Number of Positions | 2 |
| Operating Force | 4.5N Max |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
