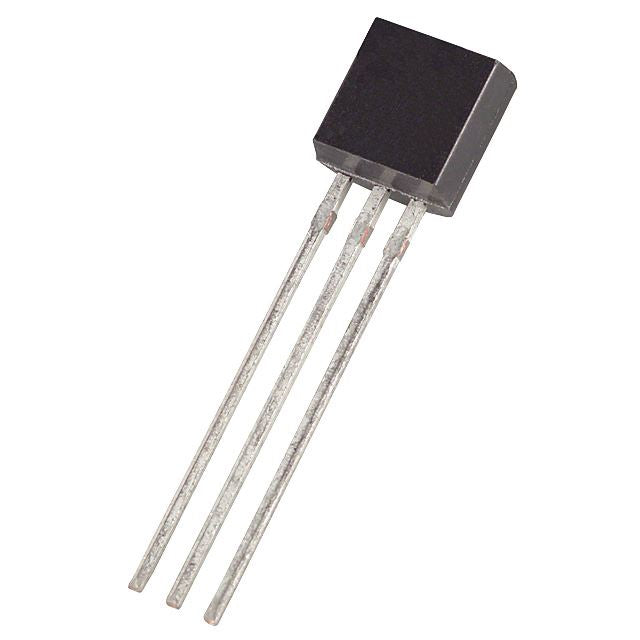

2N5401 PNP Transistor 150V TO-92
by Diotec
SKU 305003
MPN: 305003
Availability:
43 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
Inc VAT
£0.18
-
£0.18
Current price
£0.18
Inc VAT
PNP amplifier transistor.
Package: TO-92 Collector-Emitter Voltage (VCEO): 150V Collector-Base Voltage (VCBO): 160V Emitter-Base Voltage (VEBO): 5V Collector Current (IC): 600mA Total Device Dissipation @ Tc = 25°C (PD): 1.5W DC Current Gain (hFE): (IC = 1ADC, VCE = 5VDC) 50 min
Specification
| Back order lead time | 5 Days |
| Collector base voltage | 160V |
| Collector current | 600mA |
| Collector emitter voltage | 150V |
| Dc current gain | 60-240 |
| Maximum operating temperature | 150°C |
| Mounting type | Through Hole |
| Package | TO92 |
| Power dissipation | 625mW |
| Transistion frequency | 400MHz |
| Type | PNP |
