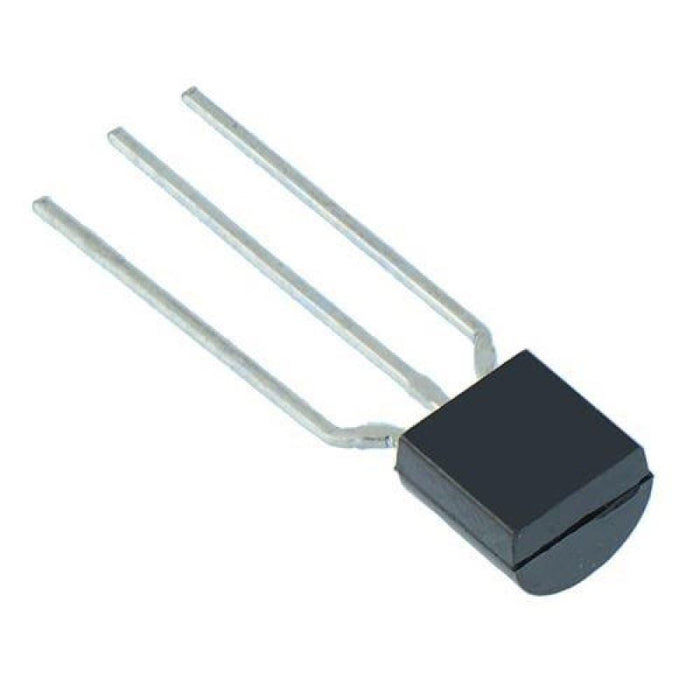

2N5551 Bipolar NPN Transistor 160V 600mA TO92
by Diotec
SKU 480708
MPN: 2N5551
Availability:
524 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
£0.14
-
£0.14
Current price
£0.14
The 2N5551 is a general purpose NPN transistor housed in a TO92 package, suitable for signal processing, switching and amplication applications.
Collector emitter voltage: 160V Collector base voltage: 180V Emitter base voltage: 6V Collector current: 600mA Power dissipation: 625mW
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 180V |
| Collector Current | 600mA |
| Collector Emitter Voltage | 160V |
| Maximum Operating Temperature | 150°C |
| MOQ | 5 |
| Package | TO92 |
| Power Dissipation | 625mW |
| Type | NPN |
