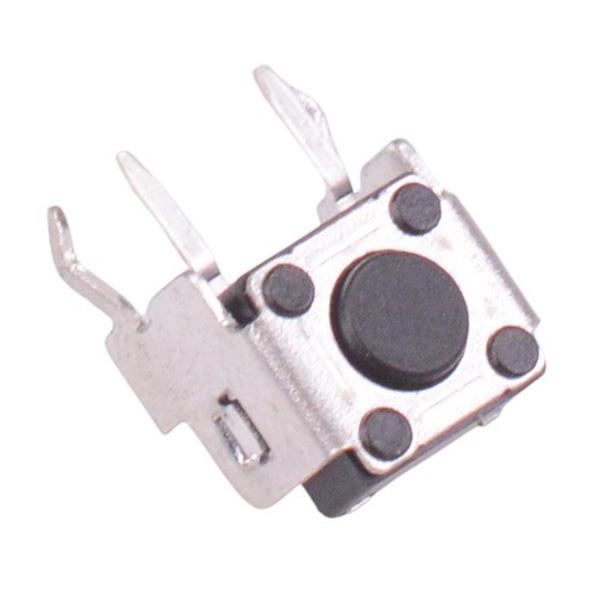

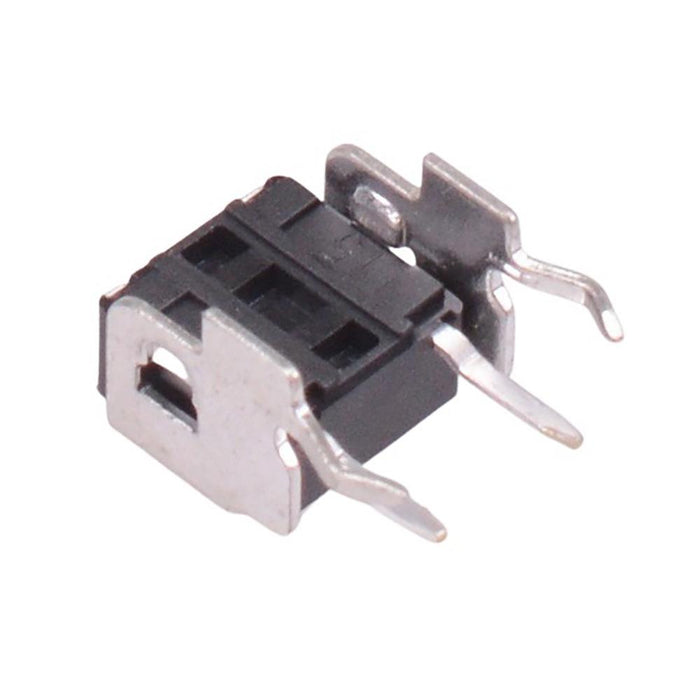

3.15mm Button 6mm x 6mm Right Angle Through Hole Tactile Switch 100g
by Diptronics
SKU 492489
MPN: DTSA61KV
Availability:
1500 in stock
Original price
£0.20
-
Original price
£0.20
Original price
£0.20
£0.20
-
£0.20
Current price
£0.20
The DTSA61KV is a right angle tactile switch with a 6mm x 6mm package and 3.15mm height. The switch provides a positive tactile feedback and is suitable for through hole mounting.
Horizontal through hole mounting 6mm x 6mm package 3.15mm height Rating: 50mA 12VDC Operating force: 100gf Travel: 0.25mm With ground terminal
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 3.15mm |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 100gf |
| Operating Temperature | -40°C to +85°C |
| Product Series | DTSA-6 |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
