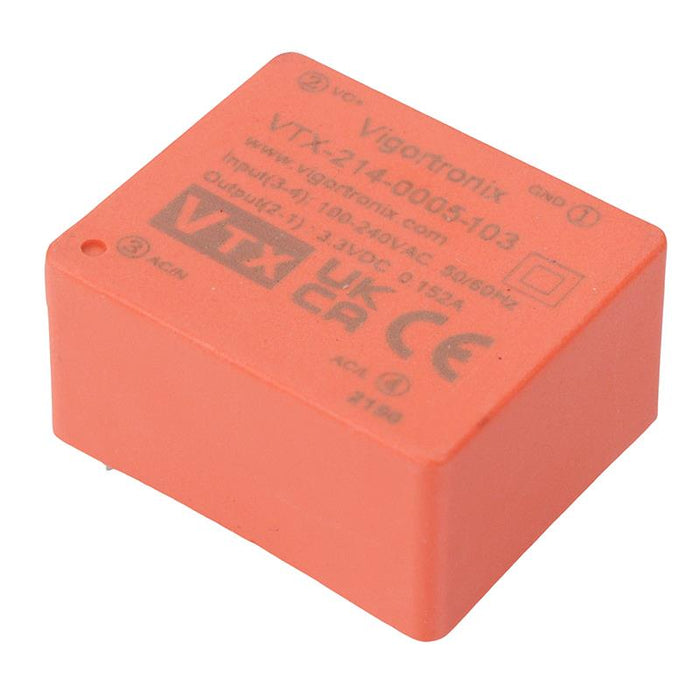

3.3V AC-DC 0.5W Single Output Power Supply VTX-214-0005-103
by Vigortronix
SKU 483801
MPN: VTX-214-0005-103
Availability:
10 in stock
Original price
£3.38
-
Original price
£3.38
Original price
£3.38
£3.38
£3.38
-
£3.38
Current price
£3.38
The VTX-214-0005-103 is a AC-DC power supply featuring a 0.5W single output producing 3.3V. The transformer features a low profile compact size suitable for PCB applications with limited space.
Regulated single output Input: 90-277VAC, 47-63Hz Output voltage: 3.3VDC Output current: 151mA Low ripple & noise Encapsulated design Safety appovals: EN61558, EN60950, CE
Specification
| Ambient Temperature | 70°C |
| Back Order Lead Time | 7 |
| Input Voltage | 90-277VAC |
| MOQ | 1 |
| Output Current | 151mA |
| Output Voltage | 3.3VDC |
| Power Rating | 0.5W |
