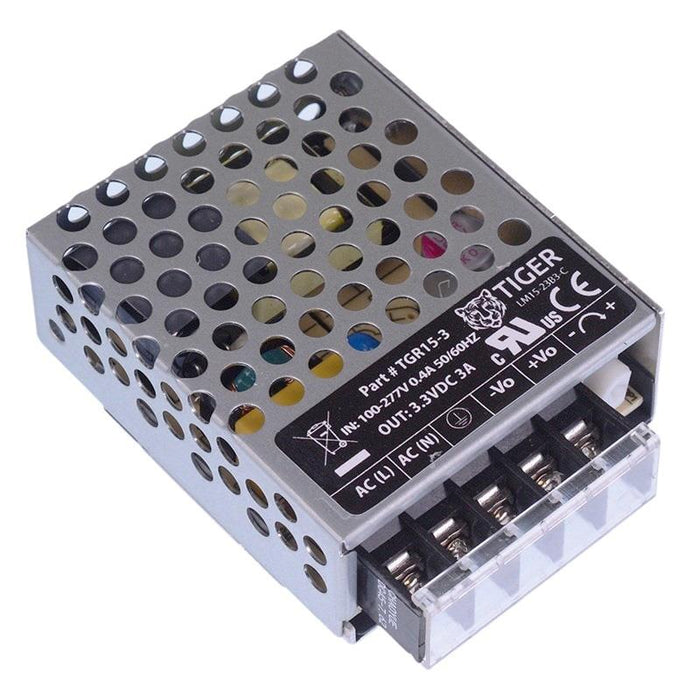

3.3VDC 3A 10W Industrial Enclosed Power Supply
SKU 484407
MPN: 484407
Availability:
Out of stock
Sold out
Original price
£11.40
-
Original price
£11.40
Original price
£11.40
£11.40
-
£11.40
Current price
£11.40
10W 3.3VDC enclosed AC-DC switching power supply featuring selectable AC input and accepts DC input at the same time. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.
Power: 10W Nominal output: 3.3VDC / 3A Output voltage adjustable range: 2.85-3.6VDC AC Input voltage: 85-305VAC DC Input voltage: 100-430VDC Low standby power consumption, high efficiency Output short circuit, over-current, over-voltage protection IEC/EN/UL62368, GB4943 safety approval Dimensions: 65 x 55 x 25mm (Length x Width x Height)
Specification
| Ambient Temperature | -30°C to 70°C |
| Back Order Lead Time | 5 Days |
| Input Frequency | 47-63Hz |
| Input Voltage | 85-305VAC / 100-430VDC |
| Output Connector | Terminal Block |
| Output Current | 3A |
| Output Voltage | 3.3VDC |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Power Rating | 10W |
| Short Circuit Protection | Yes |
