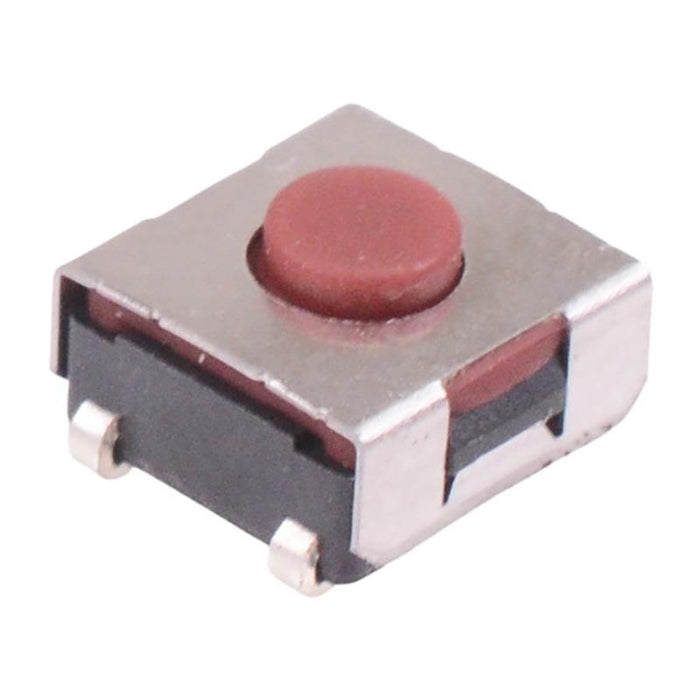

3.8mm Washable SMT Tactile Switch 6x6mm SPST 180gf
by Diptronics
SKU 492490
MPN: DTSJW-69N-V-T/R
Availability:
5400 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
£0.19
-
£0.19
Current price
£0.19
The DTSJW-69N-V-T/R is a washable vertical tactile switch with a 6mm x 6mm standard package and 3.8mm height. The switch provides a positive tactile feedback and is suitable for SMT mounting.
Vertical SMT mounting 6mm x 6mm package 3.8mm height Rating: 50mA 12VDC Operating force: 180gf Travel: 0.45mm Tape packaging
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Brown |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Height | 3.8mm |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 180gf |
| Operating Temperature | -40°C to +85°C |
| Pitch | 6.3 x 4.0mm |
| Product Series | DTSJW-6 |
| Switch Operation | Off-(On) |
| Terminal Type | Surface Mount |
| Voltage Rating | 12VDC |
