3 Axis + Pushbutton Fingertip Potentiometer Joystick APEM

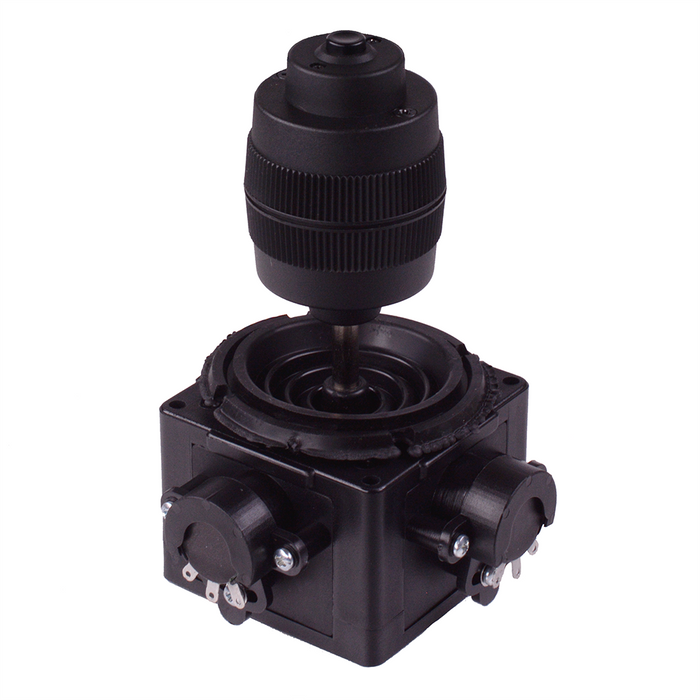

APEM joystick designed for precision finger operated applications requiring proportional control and long lifespan. Featuring 3 axis with potentiometer technology and a low profile mounting depth. The joysticks compact size, low operational force and high reliability make it ideally suited for clean environment applications including coordinate measuring machines, CCTV equipment and broadcast camera control.

3 axis with pushbutton

Square limiter plate

Rubber boot mounting bezel

Spring centering

Flying leads

Potentiometer output: 5K 220Ω

Joystick travel: ±30°

Panel cut-out: 39.7mm

Mounting hole pitch: 35.56 x 35.56mm

Dimensions: 65.0 x 65.0 x 106.4mm (length x width x height)
