3 Pin Waterproof W17 Female Socket Panel Mount Connector IP68
SKU 490946
MPN: SE-W17A2-03
Availability:
49 in stock
Original price
£2.86
-
Original price
£2.86
Original price
£2.86
£2.86
£2.86
-
£2.86
Current price
£2.86

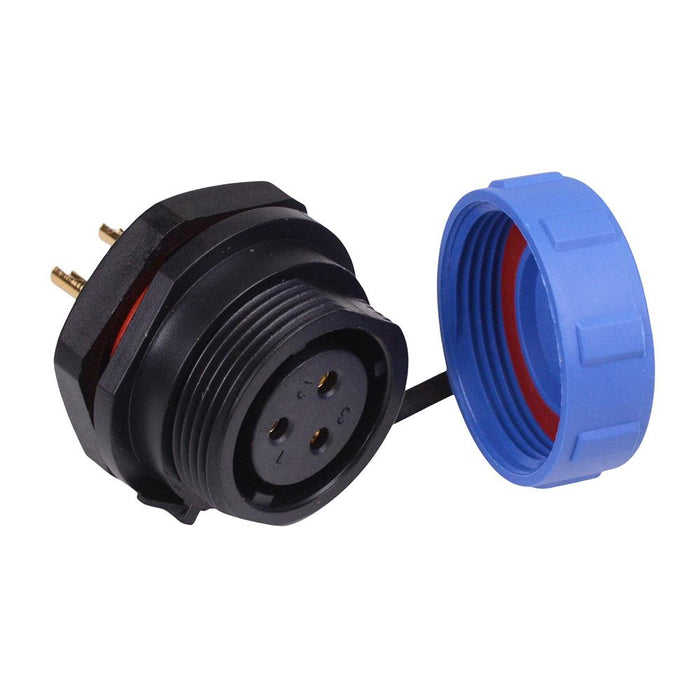

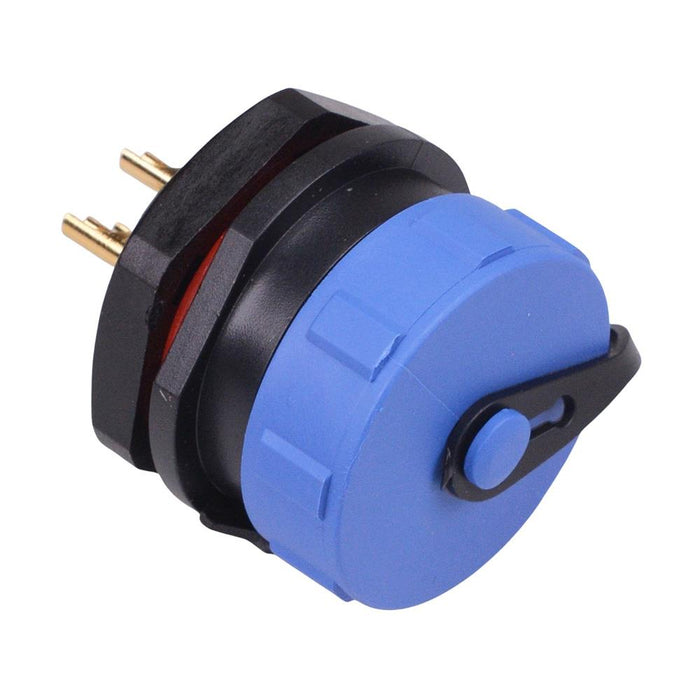

3 way 17mm female circular socket featuring IP68 protection rating and solder terminals. The connector features a compact design, suitable for panel mount applications requiring a waterproof rugged connector.
Protection level: IP68 Rating: 10A 500V Panel cut-out: 17.0mm Solder termination Rated for 500 mating cycles Dimensions: 25.2 x 25.5mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 10A |
| Gender | Female |
| Housing Material | PPO, PA66 |
| MOQ | 1 |
| Mounting Type | Panel |
| Number of Ways | 3 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 17mm |
| Panel Thickness | 3mm Max |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W17 |
| Voltage Rating | 500V |
| Wire Range | ≤14AWG |
