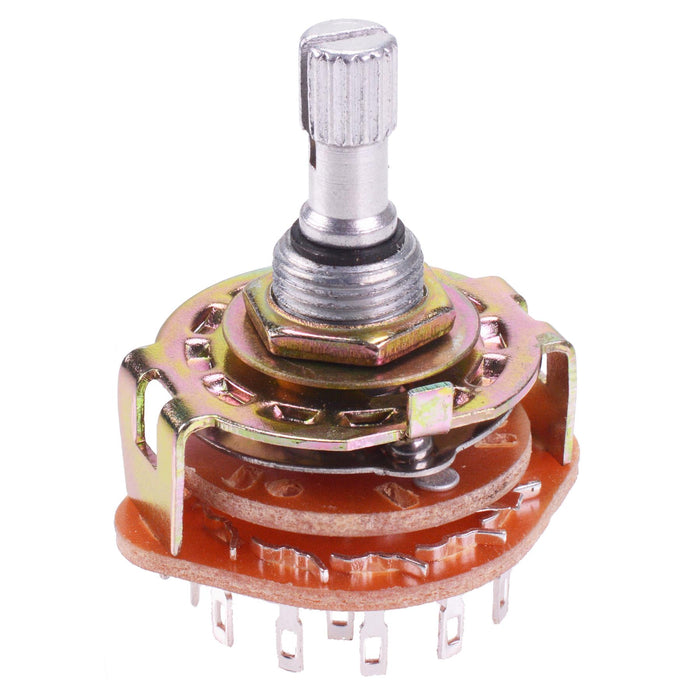

3 Pole 4 Way Rotary Switch 6mm Actuator

SKU 483322

MPN: 483322

Availability:
278 in stock
Original price £1.26 - Original price £1.26
Original price
£1.26 Inc VAT
£1.26 - £1.26
Current price £1.26 Inc VAT
3 pole 4 way rotary switch featuring a splined 6mm shaft featuring solder terminals, suitable for panel mount applications.

  • 3 pole 4 position
  • 0.5A 125VAC, 0.3A 250VAC
  • Solder terminals
  • 6mm splined shaft
  • Mounting hole diameter: 9.5mm
  • Dimensions: 39.5 x 31mm (Height x Width)
  • Specification
    Back order lead time 45 Days
    Contact configuration 3P4T
    Contact rating 0.5A 125VAC, 0.3A 250VAC
    Current rating 0.5A @ 125VAC
    Electrical life 20,000 Cycles
    Mounting style Panel
    Number of poles 3
    Number of ways 4
    Operating temperature -25°C to +85°C
    Panel cut out 9.5mm
    Terminal type Solder
    Voltage rating 250VAC
