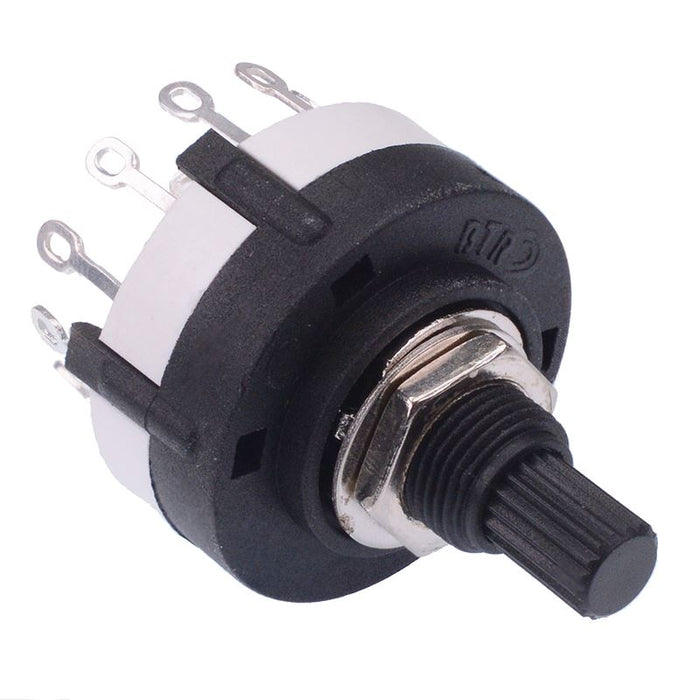

3 Pole 4 Way Rotary Switch Splined Shaft Solder Terminals

SKU 486498

MPN: 486498

22 in stock
Original price £1.79 - Original price £1.79
Original price
£1.79 Inc VAT
£1.79 - £1.79
Current price £1.79 Inc VAT
3 pole break before make rotary switch featuring 4 ways and 18T splined 6mm shaft. The switch features solder terminals and are suitable for a wide range of panel mount applications.

  • 3 pole 4 way
  • 18T splined shaft
  • Solder terminals
  • Break before make
  • 7.5mm shaft length
  • Complete with nut, washer and position stop
  • Dimensions: 36.5 x 26mm (Height x Diameter)
  • Specification
    Back order lead time 30 Days
    Contact configuration 3P4T
    Contact rating 2.5A 125VAC, 0.35A 125VDC
    Current rating 2.5A @ 125VAC
    Electrical life 15,000 Cycles
    Material Nylon
    Mounting style Panel
    Number of poles 3
    Number of ways 4
    Operating force 400gf
    Operating temperature -30°C to +85°C
    Panel cut out 10mm
    Terminal type Solder
    Voltage rating 125VAC
