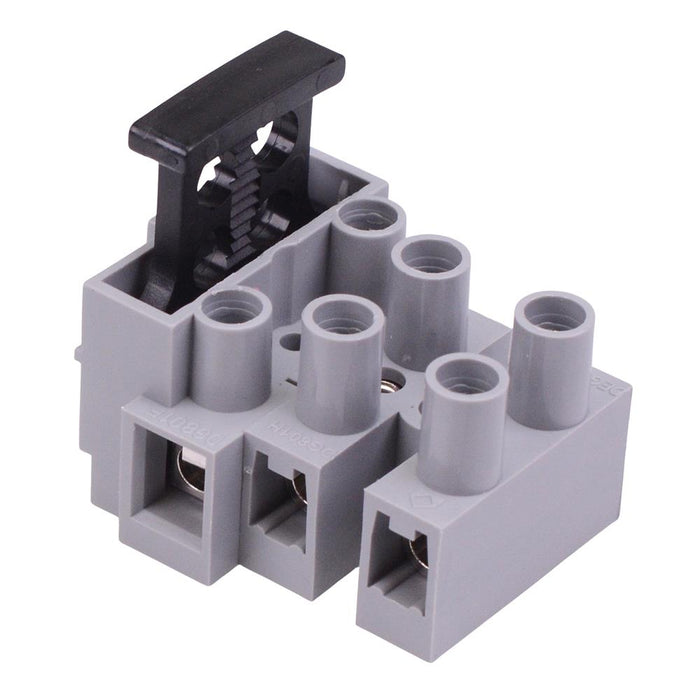

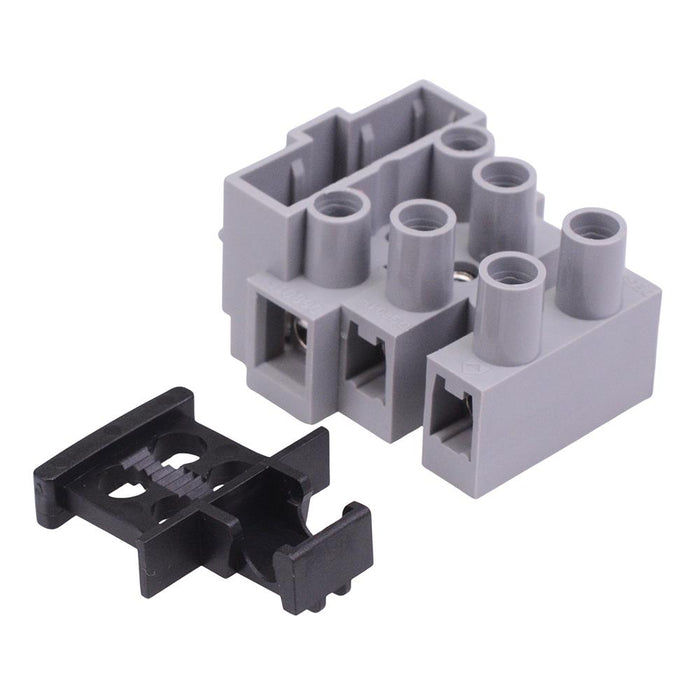

3-Pole Fused Terminal Block 10A 300V
by Degson
SKU 488812
MPN: DG801-3P11
Availability:
712 in stock
Original price
£0.88
-
Original price
£0.88
Original price
£0.88
£0.92
£0.92
-
£0.92
Current price
£0.92
3 pole fused terminal block manufactured from PA66 suitable for making wire to wire connections with built-in fuse facility for over-current protection.
3 pole 5x20mm fuse facility 10mm pitch Housing material: PA66 Rating: 10A 300V Wire range: 22-14AWG Suitable for panel mounting
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 10mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 22-14AWG |
