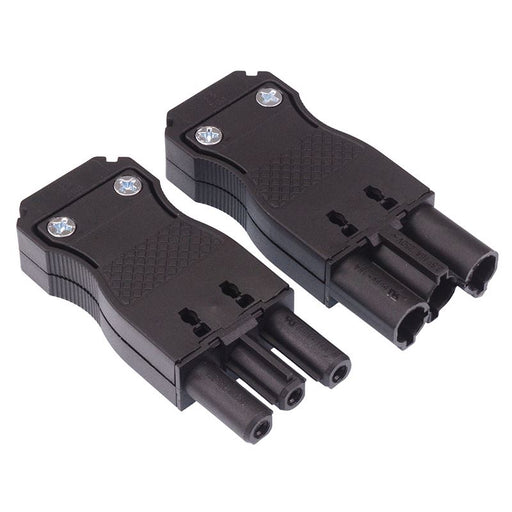

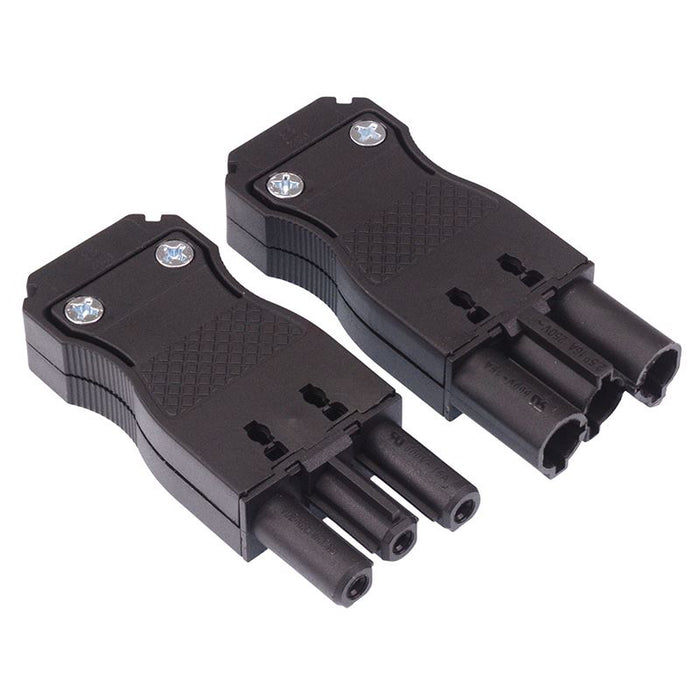

3 Pole Male and Female Locking Lighting Connector 16A
SKU 483100
MPN: 483100
Availability:
314 in stock
Original price
£3.14
-
Original price
£3.14
Original price
£3.14
Inc VAT
£3.14
-
£3.14
Current price
£3.14
Inc VAT
Male and female 3 pole lighting connector featuring a low profile deisgn, manufactured from tough polyamide 66 suitable for use with 3 core round cable.
16A 250V rating IP30 protection rating VDE approved Protection against reverse polarity assembly Wire capacity: 0.75 to 2.5mm°C Compliant with EN 61984
Specification
| Back order lead time | 30 Days |
| Colour | Black |
| Contact material | Nickel Plated Brass |
| Current rating | 16A |
| Housing material | PA66 |
| Mounting type | Cable Mount |
| Number of ways | 3 |
| Operating temperature | 90°C |
| Protection level | IP30 |
| Termination method | Screw |
| Voltage rating | 250V |
| Wire range | 0.75-2.5mm² |
