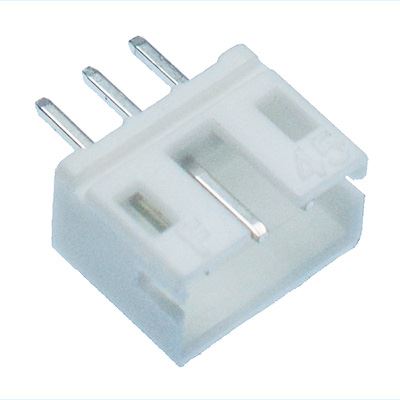

3-Way 2.00mm PCB Header

SKU 481916

MPN: 481916

Availability:
1055 in stock
Original price £0.14 - Original price £0.14
Original price
£0.14
£0.14 - £0.14
Current price £0.14
3 way PCB header featuring a 2.00mm pitch, suitable for mating with matching PCB housings and compatible with JST PH connectors.

  • Ways: 3
  • Pitch: 2.00mm
  • Housing material: PA66 UL94V-2
  • Contact material: brass
  • Plating: tin
  • Wire range: 24-32AWG
  • PCB thickness: 0.8-1.6mm
  • Specification
    Back Order Lead Time 45 Days
    Current Rating 2A
    Housing Material PA66
    MOQ 5
    Mounting Type PCB Mount
    Number of Ways 3
    Operating Temperature -25°C to +85°C
    Pitch 2.00mm
    Termination Method Solder
    Voltage Rating 100VAC
    Wire Range 24-32AWG
