3-Way 3.5mm 45° Screwless Push-In PCB Terminal Block Grey 6A 300V

SKU 488478


153 in stock
Original price £0.80 - Original price £0.80
Original price
£0.80 Inc VAT
£0.80 - £0.80
Current price £0.80 Inc VAT

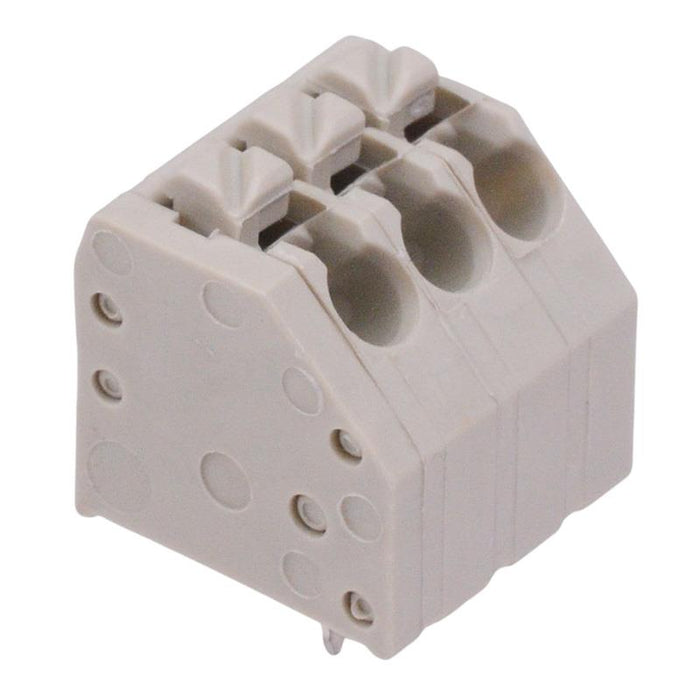

3 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 3.5mm pitch and 45° wire entry to the board. The terminal blocks are rated up to 6A, making them suitable for a wide range of PCB applications.

  • 3 pole
  • 3.5mm pitch
  • Push-in connection
  • With lever
  • 45dg wire entry to the board
  • Material: PA66
  • Rating: 6A 300V
  • Wire size: 22-16AWG
  • Specification
    Back order lead time 10 Days
    Colour Grey
    Contact material Copper Alloy
    Current rating 6A
    Housing material PA66
    Mounting type PCB Mount
    Number of ways 3
    Operating temperature -40°C to +105°C
    Pitch 3.5mm
    Termination method Push Clamp
    Voltage rating 300VAC
    Wire range 22-16AWG
