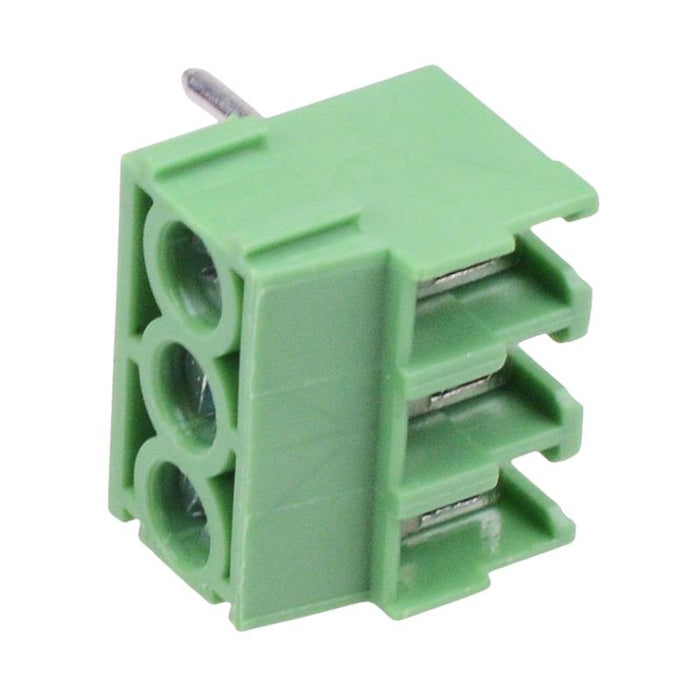

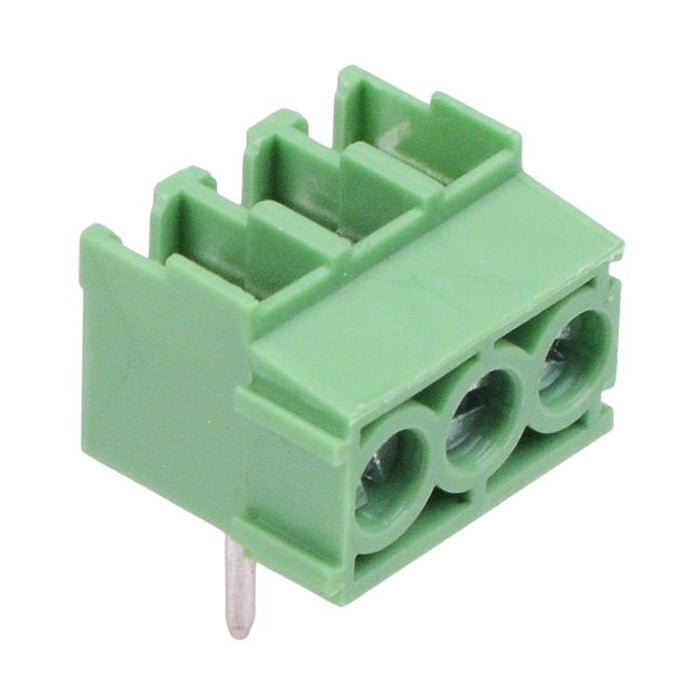

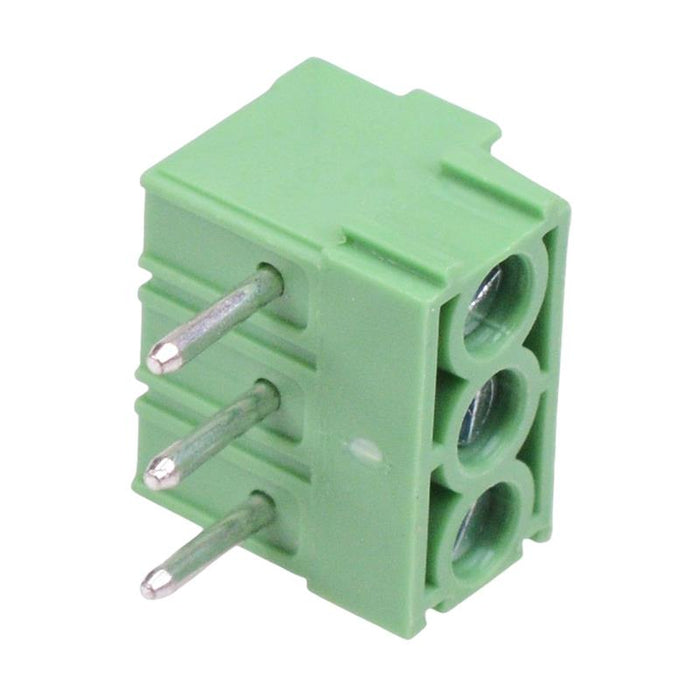

3-Way 3.5mm Right Angle PCB Terminal Block 10A 300V
by Degson
SKU 488719
MPN: DG351R-3.5-03P
Availability:
2000 in stock
Original price
£0.37
-
Original price
£0.37
Original price
£0.37
£0.39
£0.39
-
£0.39
Current price
£0.39
3 pole PCB terminal block by Degson, featuring a 3.5mm pitch and end-stackable right angle design. The terminal blocks are rated up to 10A, suitable for a wide range of PCB through hole applications.
3 pole 3.5mm pitch Right angle orientation Material: PA66 Rating: 10A 300V PCB hole diameter: 1.1mm Height above PCB: 7.6mm Depth: 9.2mm Wire size: 26-16AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Steel |
| Current Rating | 10A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
| Wire Range | 26-16AWG |
