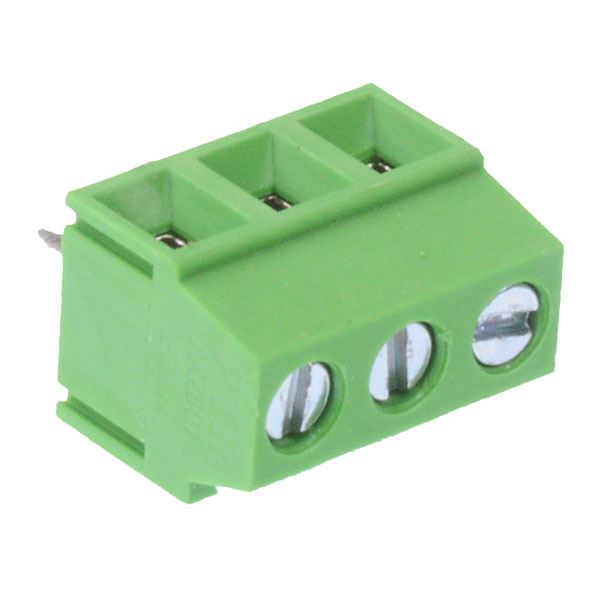

3-Way 3.81mm PCB Terminal Block Green 10A 150V
by PTR HARTMANN
SKU 487680
MPN: AKZ601/03-3,81-V-GREEN
Availability:
997 in stock
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
Inc VAT
£0.38
-
£0.38
Current price
£0.38
Inc VAT
3 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 3.81mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 10A, making them suitable for a wide range of PCB applications.
3 pole 3.81mm pitch Wire entry parallel to the board Material: PA66 Rating: 10A 150V Wire size: 28-16AWG
Specification
| Back order lead time | 10 Days |
| Colour | Green |
| Contact material | Brass |
| Current rating | 10A |
| Housing material | PA66 |
| Mounting type | PCB Mount |
| Number of ways | 3 |
| Operating temperature | -40°C to +105°C |
| Pitch | 3.81mm |
| Termination method | Screw |
| Voltage rating | 150VAC |
| Wire range | 28-16AWG |
