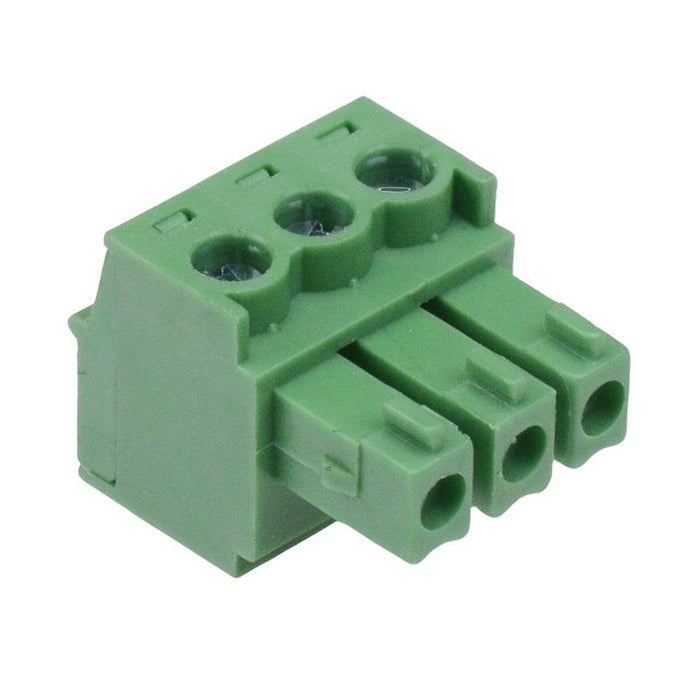

3-Way 3.81mm Right Angle Pluggable Terminal Block 8A 300V
SKU 488503
MPN: 488503
Availability:
103 in stock
Original price
£0.46
-
Original price
£0.46
Original price
£0.46
£0.46
£0.46
-
£0.46
Current price
£0.46
3 pin pluggable PCB terminal block featuring a 3.81mm pitch and horizontal body orientation suitable for 28 to 16AWG cable.
3 poles 8A current rating 300V voltage rating 28-16AWG wire size Rising clamp termination
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Current Rating | 8A |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.81mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 28-16AWG |
